Rectangular Portlight Boat Aluminum Steel Marine Windows , Fixed Windows

China Shanghai Zhiyou Marine & Offshore Equipment Co.,Ltd. certification
China Shanghai Zhiyou Marine & Offshore Equipment Co.,Ltd. certification
I'm Online Chat Now

Rectangular Portlight Boat Aluminum Steel Marine Windows , Fixed Windows

China Rectangular Portlight Boat Aluminum Steel Marine Windows , Fixed Windows supplier
Rectangular Portlight Boat Aluminum Steel Marine Windows , Fixed Windows supplier Rectangular Portlight Boat Aluminum Steel Marine Windows , Fixed Windows supplier Rectangular Portlight Boat Aluminum Steel Marine Windows , Fixed Windows supplier

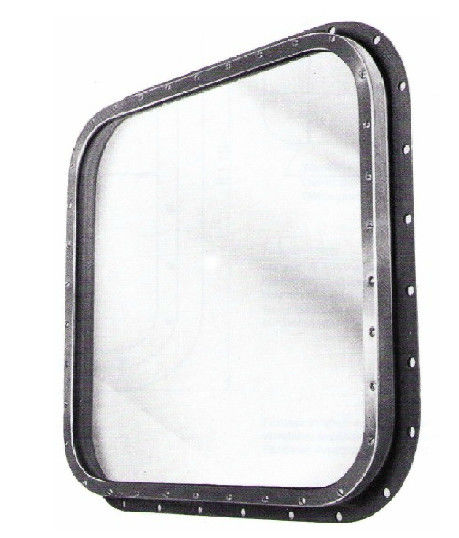

Large Image :  Rectangular Portlight Boat Aluminum Steel Marine Windows , Fixed Windows

Product Details:

Place of Origin: Shanghai China
Brand Name: Zhiyou
Certification: ABS CCS BV LR DNV NK KR etc.
Model Number: ZY-W008

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiatable
Packaging Details: Plywood case with plastic film wrapping or other packages
Delivery Time: Within 20 to 30 days, According to customers's order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/month
Detailed Product Description
Frame Materials: Stainless Steel, Marine Steel, Aluminum, Copper Etc Fixed Window: Fixed
Opening Pattern: Horizontal OEM & ODM Service: Available
Product Name: Marine Windows Third Party Inspection: Or Other Available Inspection
Key Words: Fixed Portlight Windows/water Tight/weather Tight
High Light:

custom marine windows

,

sealed marine windows

Rectangular Portlight Boat Aluminum Steel Marine Windows , Fixed Windows



Specifications:

  1. Optional glass thickness; optional type, optional frame material( marine steel, stainless steel, aluminum, copper)

  2. Simple installation; good quality and very safety; Rubber gasket three years warranty

  3. Fixed, opened (Bolted or Welded) Type; OEM service and Special requirement is available

  4. Hinged type, Watertight/ Weather tight and fireproof marine windows.

  5. Round or Right Angle corners for option; Left open/ right open or sliding mechanism

  6. Certificate: ABS CCS BV LR DNV NK KR etc.

Rectangular Portlight Boat Aluminum Steel Marine Windows , Fixed Windows 0



Details for Marine Rectangular Windows

ZHIYOU MARINE

www.marineoutfittings.com



Type

   Model

Name

Material of window frame

  A

    CH

Electric heating glass bolt fixed rectangular window



Aluminum alloy

    CN

Tempering glass bolt fixed rectangular window

  B

    WH

Electric heating glass welded fixed rectangular window

Carbon steel

    WN

Tempering glass welded fixed rectangular window



The electric heating glass installed on a fixed rectangular window for wheelhouse should conform to the rules of ISO 3434,



Power load and parameters of the glass needed should follow the below table:



Power supply

Overheating

protection system

Min.power load   (W/dw2)

Current

Voltage

V

Frequency

Hz

     7

   12

    17

                  Code

   DC

   24

__

            G

  7G01

12G01

17G01

            S

  7S01

12S01

17S01

  110

__

            G

  7G02

12G02

17G02

            S

  7S02

12S02

17S02

  240

__

            G

  7G03

12G03

17G03

            S

  7S03

12S03

17S03



All products can be customized as your requirement.

We can provide various kinds of marine windows and side scuttles, including
(1) Aluminum alloy rectangular window (Fixed type)
(2) Aluminum alloy side scuttle (Opening type)
(3) Welted-in brass rectangular window (Opening type)
(4) Bolted-in aluminum alloy rectangular window (Opening type)
(5) Welted-in fireside scuttle
(6) Welted-in rectangular fire window
(7) Bolted-in fireside scuttle
(8) Bolted-in rectangle fire window



Marine ordinary rectangular window ship use



*  Ordinary rectangular marine window

*  Used for sea-going ship and warships also could be used for inland ship



OTB: Out-upward opened type

ITB: In-upward opened type

NOB: Fixed type

OLB: Outward left opened

ORB: Outward right opened

ILB: Inward left opened

IRB: Inward right opened



Package & Delivery& Payment terms

ZHIYOU MARINE

www.marineoutfittings.com



Payment:  By T/T(30% deposit T/T in advance, balance 70% cleared out before delivery) or
                  Irrevocable L/C at sight

Incoterm:   EXW/FCA/FOB, C&F/CIF

Package: Pallet with film packing  or according to customer's requirement

Lead time: Within one month for one 20'GP

Shipment : 20'GP, 40'GP,40'HQ, 40'OT or in bulk



Our Service

ZHIYOU MARINE

www.marineoutfittings.com



Zhiyou has been doing an OEM job for many reputable companies for many years, which makes the best guaranty for Zhiyou technical advantages with precise design. Zhiyou Marine& Offshore is designed according to ABS CCS BV LR DNV NK KR etc standard. In line with the responsibility spirit for customers,

we try to satisfy the standards and the customers’ requirement in the process of designing and

manufacturing process, as well as fully consider the basic cost. The products we providing will guarantee

the quality and reasonable price, which ensure our cooperated customers can get the maximum value

and minimum cost.

1) Punctual delivery:
• We put your order into our tight production schedule, keep our client informed about the production

process, ensure your punctual delivery time.
• Shipping notice/ insurance to you as soon as your order is shipped.


 2) Services after sales:
• An reasonable solution and/or response to any inquiry shall be provided within 24hrs upon receipt of it.
• Terms and conditions of warranty shall be strictly abiding by.
• Maintenance service shall be provided accordingly

3) Professional design and efficient solution:
• Our experienced engineers and experts guaranteed our customer with satisfactory design &  solution
• Rich experiences in various bids assistance including documentary support
• Efficient solution providing through our professional designer and technical supporter



Quality  Guarantee

ZHIYOU MARINE

www.marineoutfittings.com



Product Range:  All marine outfittings, equipment and facilities, etc

Product Design:  With a strong engineer team, for all marine products, we support design, manufacture,

installation, etc, according to your requirements. All products strictly conform to your confirmation.

Product Process:  Most of the products are finished in our own manufacture bases, thus quality and delivery

time could safely be guaranteed and also avoid indirect troubles

Product Inspection: Double inspection make sure quality guaranteed completely.



Our Related Products

ZHIYOU MARINE

www.marineoutfittings.com



OUR PRODUCT RANGE


1

Marine door

Watertight

Fireproof

Quick action

Weathertight

Airtight&Sound-reduction

Hydraulic Watertight

Hollow Cabin Door

2

Marine windows

Fixed

Skylight

Porthole

Sliding

Watertight

Fireproof

Louver&

Cabin Shutters

3

Hatch cover& man hole

Sliding

Watertight Manhole Cover

Bolted watertight

Suez Canal Light

Quick action

Type A B C D

Rotating Oil tight

4

Mooring component

Marine bollards

Fairlead

Mooring roller

Mooring chock







5

Marine steel product

Seamless steel Pipe

Seam steel pipe

Marine crane

Marine Stern Roller

Marine fender rubber cylinder

Steel structure

API pipe

6

Marine propeller& shaft

Rudder System

propeller

Rudder shaft sealing component

Rudder blade

Rudder carrier bearing

Rudder stock/pintle sealing apparatus

Fin stabilizer

7

Marine deck equipment

Mooring winch

Crane

Windlass

Capstan

Rope Guider

Cable lifter



8

Rubber elements

Rubber fenders

Pneumatic fender

Ship launching airbag

Rubber sealing strip

Quay fenders

Drain airbag



9

Pressure vessel tank

Anti- Corrosion pressure

Fermentation tank

Low-temperature pressure

Compressor air tank

Oil& LPG tank

Vacuum tank

Foam buffer tank

10

Marine boarding ladder& gangplank

Boarding ladder

Draft ladder

Lifesaving ladder

Vertical access ladders

Embarkation ladder

Accommodation ladder

Gangplank

11

Welding material

E  6013

E 7018

E 7024

E 7018-1

E 308L-16

E 347L-16

E 309L-16

12

Metal Processing Machinery Parts

Machinery Parts or fittings can be designed as your drawings or detailed requirements, and processed by lathes, milling machines, planing machines, drills.



 NOTES:


1. The content of this table doesn't cover all categories, providing that the item you are looking for is not included hereof, please feel free to contact us.
2. All the products shall be customized accordingly, OEM&ODM available.
