Grey Paint A60 Single Pull Hatch Cover Escape Quick Action For Marine Ships

China Shanghai Zhiyou Marine & Offshore Equipment Co.,Ltd. certification
China Shanghai Zhiyou Marine & Offshore Equipment Co.,Ltd. certification
I'm Online Chat Now

Grey Paint A60 Single Pull Hatch Cover Escape Quick Action For Marine Ships

China Grey Paint A60 Single Pull Hatch Cover Escape Quick Action For Marine Ships supplier
Grey Paint A60 Single Pull Hatch Cover Escape Quick Action For Marine Ships supplier Grey Paint A60 Single Pull Hatch Cover Escape Quick Action For Marine Ships supplier Grey Paint A60 Single Pull Hatch Cover Escape Quick Action For Marine Ships supplier

Large Image :  Grey Paint A60 Single Pull Hatch Cover Escape Quick Action For Marine Ships

Product Details:

Place of Origin: Shanghai China
Brand Name: Zhiyou
Certification: ABS CCS BV LR DNV NK KR etc.
Model Number: ZY-C001

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wood packing with plastic film or other customers required packages
Delivery Time: Within 20 to 30 days, According to customers's order
Supply Ability: 20000pcs/month
Detailed Product Description
Material: Marine Steel, Stainless Steel Nominal Size: 800--2000mm
Thickness: Customized Water Pressure: 0.03-0.1Mpa
Corner: Right Angle / Round Angle Model: Quick Action, Left Or Right Or Sliding
Type: Watertight, Weathertight, Fireproof OEM & ODM Service: Available
Handle: Level Type/ Wheel Type Third Party Inspection: Or Other Available Inspection
Key Words: Manway Cover/deck Hatch Covers/quick Action Deck Hatch Covers
High Light:

watertight hatch covers

,

boat hatch covers

Grey Paint A60 Single Pull Hatch Cover Escape Quick Action For Marine Ships

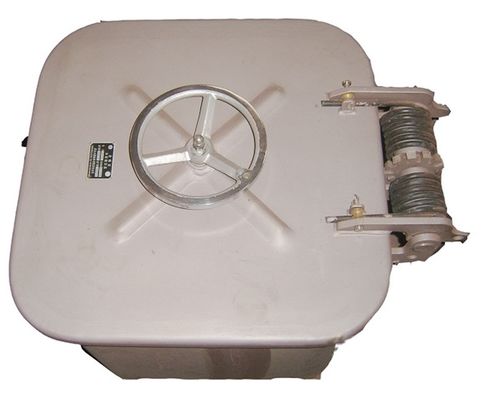

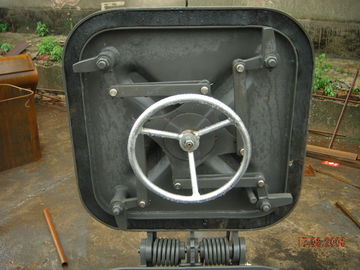

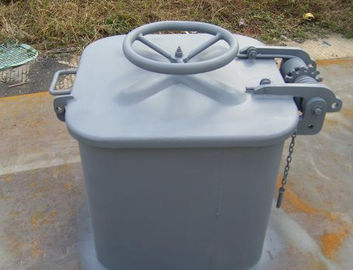

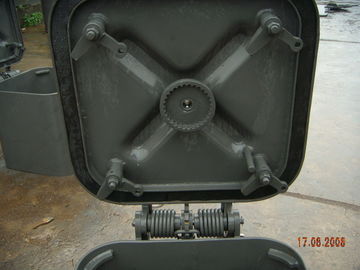

Escape quick action small hatch cover is square or round outstanding hatch cover, cover plate by the center rotating handle clip with coaming fastening can fast open-close ning from two sides because of equipped with spring hinge, so the small hatch opening force.It is often used in engine room and other space emergency escape route in the open deck of inward and outward.





  Product name  Marine escape quick action small hatch cover
  Material  Carbon steel
  Structure  Quick Action
  Thickness of cover  4-12mm  marine manhole cover
  Opening size   (B+20)X(L+20)  (such as 630X630) mm
  Outside size   (B+120)X(L+120)  (such as 692X692) mm
  Wallcut size   BXL  (such as 600X600) mm
  Paint Grey paint
  Packing Standard package for marine weathertight hatch covers
  Certifications ISO 9001:2008, CCS, BV, ABS, DNV, GL, LR,RS,NK and etc.
  Customizing Service 1) Semi-finished products and finished products can be provided
2) OEM service is available.






Quick Details:


Product Name:
Marine escape quick action small hatch cover

OEM & ODM Service: Available

Model Number:ZY-C001

Place of Origin: Shanghai China

Material:marine steel, stainless steel,


Nominal Size:800--1200mm

Thickness: Customized

Water Pressure:0.03-0.1Mpa

Corner: Right angle / round angle

Model: Quick action,
left or right or sliding

Type:Watertight, weathertight, fireproof

OEM & ODM Service:Available




Details for Marine Escape Quick Action Small Hatch Cover

ZHIYOU MARINE

www.marineoutfittings.com



Grey Paint A60 Single Pull Hatch Cover Escape Quick Action For Marine Ships 0



Clear size
of opening
A*B

Cover
dimension
A1*B1

Opening size
of deck
A2*B2*R

Outside size
A3*B3

Cover plate
thickness
t

Coaming
thickness

Weight
Kg

600*600

750*750

790*790*R195

870*870

4

6

82















700*700

850*850

890*890*R195

970*970

6

6

102















600*800

750*950

790*990*R195

870*1070

6

8

114

800*1200

950*1350

990*1390*R195

1070*1470

8

11

239

1000*1400

1150*1550

1190*1590*R195

1270*1670

8

11

316

1500*1750

1650*1900

1690*1940*R195

1770*2020

8

11

487



All products can be customized as your requirement.
