ABS DNV BV Approval Marine Doors Marine Weathertight Doors

China Shanghai Zhiyou Marine & Offshore Equipment Co.,Ltd. certification
China Shanghai Zhiyou Marine & Offshore Equipment Co.,Ltd. certification
I'm Online Chat Now

ABS DNV BV Approval Marine Doors Marine Weathertight Doors

China ABS DNV BV Approval Marine Doors Marine Weathertight Doors supplier
ABS DNV BV Approval Marine Doors Marine Weathertight Doors supplier ABS DNV BV Approval Marine Doors Marine Weathertight Doors supplier ABS DNV BV Approval Marine Doors Marine Weathertight Doors supplier

Large Image :  ABS DNV BV Approval Marine Doors Marine Weathertight Doors

Product Details:

Place of Origin: Shanghai China
Brand Name: Zhiyou
Certification: ABS CCS BV LR DNV NK KR etc.
Model Number: ZY-M006

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiatable
Packaging Details: Plywood pallet with plastic film wrapping. Max. 6 sets per packing.
Delivery Time: Within 20 to 30 days, According to customers's order
Payment Terms: L/C, T/T
Supply Ability: 100pcs/month
Detailed Product Description
Material: Marine Steel Nominal Size: 800--1800mm
Part: Hinge Thickness: 6/8mm Or Customized
Corner: Radius Or Mitered Model: A60 Fireproof Weathertight Model
Type: Hinged/Sliding OEM & ODM Service: Available
Third Party Inspection: Or Other Available Inspection Key Words: Ship's Rail Doors/accommodation Doors
Approval: CCS,BV,ABS, LR Etc Clip Qty: 8-18 Pcs
Color: Silver Feature: Fireproof
Fireproof: Yes Installation: Welded Installation
Open: Sliding Opening Open Type: Quick Action, Wheel Handle
Opening Degree: 90/180/270/360 Sound Insulation: 30dB/40dB/50dB
Temperature: -40℃-80℃
High Light:

fireproof marine door


fireproof cabin door

ABS DNV BV Approval Marine Doors Marine Weathertight Doors

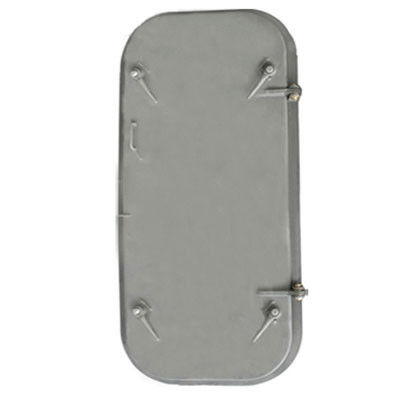

Zhiyou Marine weathertight doors are designed and manufactured for marine ships. This kind of marine doors are installed above the waterline of ships, you can directly weld it on bulkhead or wall.


Quick Details


Product Name  ABS DNV BV Approval Marine Steel Weathertight Access Doors
Description Meet IMO, SOLAS requirements
Available in natural finish, primed or coated in accordance with client request
Application Used for bulkheads above waterline
Nominal Size 1200×600--2000×800mm
Material Marine steel
Thickness Customizable
Optional Parts Portlight, hinges, door closer etc.
Available Certificate GL, DNV, CCS, BV, ABS, LR, KR, RS, etc


ABS DNV BV Approval Marine Doors Marine Weathertight Doors 0


Details for ABS DNV BV Approval Marine Steel 4 dogs Hinged Watertight Access Doors



ABS DNV BV Approval Marine Doors Marine Weathertight Doors 1

Product No. Clear Opening Dimentions   Weight Opening Direction
B×H A B Ibs
ZY-M002 26"×54" 26" 26" 200 L/R
ZY-M003 26"×60" 26" 60" 220
ZY-M004 30"×60" 30" 60" 250
All weathertight doors are available in alminum, marine steel.
Sizes and colors will be customized according to your requirements

ABS DNV BV Approval Marine Doors Marine Weathertight Doors 2


Package & Delivery& Payment terms ZHIYOU MARINE


Payment : By T/T(30% deposit T/T in advance, balance 70% cleared out before delivery) or
Irrevocable L/C at sight

Incoterm: EXW/FCA/FOB, C&F/CIF

Package: Pallet with film packing or according to customer's requirement

Lead time : Within one month for one 20'GP

Shipment : 20'GP, 40'GP,40'HQ, 40'OT or in bulk


Zhiyou has been doing OEM job for many reputable companies for many years, which makes the best

guaranty for Zhiyou technical advantages with precise design. Zhiyou Marine& Offshore is designed

according to ABS CCS BV LR DNV NK KR etc standard.In line with the responsibility spirit for customers,

we try to satisfy the standards and the customers’ requirement in the process of designing and

manufacturing process, as well as fully consider the basic cost. The products we providing will guarantee

the quality and reasonable price, which ensure our cooperated customers can get the maximum value

and minimum cost.

1) Punctual delivery:
• We put your order into our tight production schedule, keep our client informed about production

process, ensure your punctual delivery time.
• Shipping notice/ insurance to you as soon as your order is shipped.

2) Services after sales:
• An reasonable solution and/or response to any inquiry shall be provided within 24hrs upon receipt of it.
• Terms and conditions of warranty shall be strictly abide by.
• Maintenance service shall be provided accordingly

3) Professional design and efficient solution:
• Our experienced engineers and experts guaranteed our customer with satisfactory design & solution
• Rich experiences in various bids assistance including documentary support
• Efficient solution providing through our professional designer and technical supporter
Quality Guarantee ZHIYOU MARINE


Product Range: All marine outfittings, equipments and facilities etc

Product Design: With strong engineer team, for all marine products, we support design, manufacture,
install etc, according to your requirements. All products strictly conform to your confirmation.

Product Process: Most of products are finished in our own manufacture bases, thus quality and delivery
time could safely guaranteed and also avoid indirect troubles

Product Inspection: Double inspection make sure quality guaranteed completely.
Our Related Products ZHIYOU MARINE



1 Marine door Watertight Fireproof Quick action Weather tight Airtight&Sound-reduction Hydraulic Watertight Hollow Cabin Door
2 Marine windows Fixed Skylight Porthole Sliding Watertight Fireproof


Cabin Shutters

3 Hatch cover& man hole Sliding Watertight Manhole Cover Bolted watertight Suez Canal Light Quick action Type A B C D Rotating Oil tight
4 Mooring component Marine bollards Fairlead Mooring roller Mooring chock
5 Marine steel product Seamless steel Pipe Seam steel pipe Marine crane Marine Stern Roller Marine fender rubber cylinder Steel structure API pipe
6 Marine propeller& shaft Rudder System propeller Rudder shaft sealing component Rudder blade Rudder carrier bearing Rudder stock/pintle sealing apparatus Fin stabilizer
7 Marine deck equipment Mooring winch Crane Windlass Capstan Rope Guider Cable lifter
8 Rubber elements Rubber fenders Pneumatic fender Ship launching airbag Rubber sealing strip Quay fenders Drain airbag
9 Pressure vessel tank Anti- Corrosion pressure Fermentation tank Low temperature pressure Compressor air tank Oil& LPG tank Vacuum tank Foam buffer tank
10 Marine boarding ladder& gangplank Boarding ladder Draft ladder Lifesaving ladder Vertical access ladders Embarkation ladder Accommodation ladder Gangplank
11 Welding material E 6013 E 7018 E 7024 E 7018-1 E 308L-16 E 347L-16 E 309L-16
12 Metal Processing Machinery Parts Machinery Parts or fittings can be designed as your drawings or detailed requirements, and processed by lathes, milling machines, planing machines, drills.


1. The content of this table doesn't cover all catagories, providing that the item you are looking for is not included hereof, please feel free to contact us.
2. All the products shall be customerized accordingly, OEM&ODM available.
