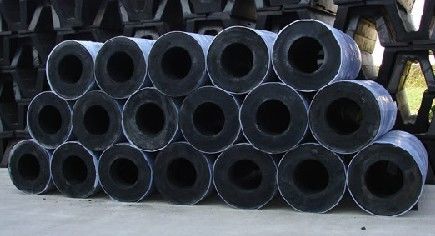

EPDM Rubber Low Reaction Force Cylinder Marine Rubber Tubes

Large Image : EPDM Rubber Low Reaction Force Cylinder Marine Rubber Tubes

Product Details:

Place of Origin:	Shanghai China
Brand Name:	Zhiyou
Certification:	BV ISO TUV
Model Number:	P-011

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	Nude packing or according to customer's request
Delivery Time:	Within 20 to 30 days, According to customers's order
Supply Ability:	10000tons/month

Contact Now

Detailed Product Description

Outer Diameter:	60 - 710 Mm Or Customized	Surface Treatment:	Galvanized
Material:	Steel	Length:	As Customer's Requirement
Test:	Squash, Extended, Water Pressure, Crystal	Application:	Gas Pipe,handrail, Railing, Staircase, Bench,furniture,etc
OEM Or ODM Service:	Available	Third Party Inspection:	Or Other Available Inspection
Category:	Marine Outfitting Equipment	Key Words:	Marine Rubber Fender Cylinder/docking/berthing
Highlight:	cylindrical rubber fenders , marine rubber fender

EPDM Rubber Low Reaction Force Cylinder Marine Rubber Tubes

Quick Detail:

a. Material: ST-52 (Equial Quality) cold & hot drawn steel tube (optional)

b. Chromed piston rod as standard

c. Working Pressure 160 bars250 bars

d. Any Requested diamensions can be produced upon order

e. One year warranty

Pneumatic Rubber Fender have been widely used for berthing structures as well as in

ship-to-ship services since 1958. Due to its superior performance, major industries such

as oil, mineral ore, offshore construction and drilling, fishing and shipbuilding, as well as

port authorities and navies all over the world adopt and support it.

Pneumatic Rubber Fender were developed utilizing the companys 80 years of research

and development technology and expertise in related areas ranging from automobile

tyres to aircraft fuel cells.

Main Product: diesel engine, diesel generator, alternator and spare parts;

Diesel Engine Usage: Widely used for generator set, boat, wheel loader, truck, water pump, sand

pump, fire pump, construction machine, etc;

Diesel Engine Power Range: from 20kw up to 700kw;

Diesel Generator Power Range: from 30kw up to 700kw.

marine rubber fender cylinder

1: Cylindrical type rubber fender has low reaction force, little surface pressure, reasonable energy absorb.

2: Cylindrical fender is applicable for longitudinal and crosswise sway of ships while berth at the dock.

3: Cylindrical fender is applicable for ships with different sizes and different docks.

4: Various installations styles can be adopted and easily reparation.

Among the first elastomeric types to be applied to wharf for vessel protection. They are economical, easy installed and they can be used with or without outer wale.

The Energy Absorption (EA) Load curves of Cylindrical Fender are cubic (compression type) pattern, lacking the efficient Energy Absorption (EA) characteristics of buckling column fender.

Cylindrical Fender can often be installed at less cost than types having equal energy capacity. They offer a means of lowering fender costs when there is a large variation in the size of incoming vessel.

specification	Outer diameter	Inner diameter	length	note
Y150	150	75	500-30000	Other spec. and Sizes can be Manufactured Upon users’ Request.
Y200	200	100
Y250	250	125
Y300	300	150
Y350	350	175
Y400	400	200
Y450	450	225
Y500	500	250
Y600	600	300
Y700	700	350
Y800	800	400
Y900	900	450
Y1000	1000	500	1000-20000
Y1100	1100	550
Y1200	1200	600
Y1300	1300	650
Y1400	1400	700
Y1500	1500	750
Y1600	1600	800
Y1800	1800	900
Y2000	2000	1000

DYNAMICS PERFORMANCE

specification	Rated compression	performance
		(KN) Reaction force		(KN-M) Energy absorb		tolerance
		standard	High reaction force	standard	High reaction force	±10%
Y150	50%	44	73	1.5	2.3
Y200		60	95	2.6	4.2
Y250		75	120	4	6.5
Y300		89	143	6	9
Y350		104	167	8	13
Y400		119	191	10	17
Y500		148	239	16	26
Y600		179	286	24	27
Y700		208	334	31	50
Y800		237	383	41	66
Y900		268	430	52	84
Y1000		297	479	64	103
Y1100		331	528	77	129
Y1200		363	574	95	152
Y1300		392	623	108	179
Y1400		422	670	128	208
Y1500		451	718	147	238
Y1600		481	776	176	282
Y1700		511	824	206	338
Y1800		541	872	247	406
Y1900		570	920	288	487
Y2000		653	1054	321	584
