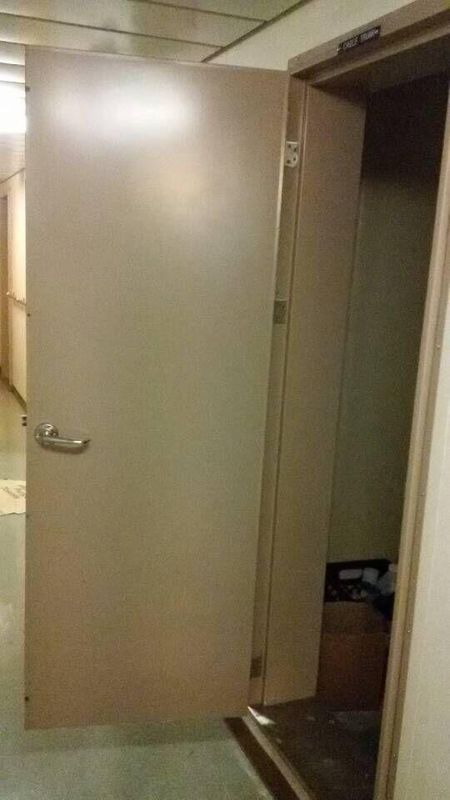

Stainless Steel Fireproof A60 Cabin Door H120 Outwards

Large Image : Stainless Steel Fireproof A60 Cabin Door H120 Outwards

Product Details:

Place of Origin:	Shanghai China
Brand Name:	Zhiyou
Certification:	ABS CCS BV LR DNV NK KR etc.
Model Number:	ZY-D001

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiatable
Packaging Details:	Plywood pallet with plastic film wrapping. Max. 6 sets per packing.
Delivery Time:	Within 20 to 30 days, According to customers's order
Payment Terms:	L/C,T/T
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Material:	Stainless Steel Steel PVC	Nominal Size:	800--2100mm
Part:	Hinge	Thickness:	Can Be Customized
Water Pressure:	0.03-0.1Mpa	Corner:	Right Angle / Round Angle
Model:	Quick Action, Left Or Right Outwards	Type:	Fireproof
OEM & ODM Service:	Available	Product Name:	Steel Stainless Steel Left Or Right Outwards Outfitting Equipment H120 Fireproof Cabin Door
Third Party Inspection:	Or Other Available Inspection	Key Words:	Cabin Doors/Fire Doors/office Door
Highlight:	ship watertight door , fireproof cabin door

Stainless Steel Left or Right Outwards Access Doors, Fireproof A60 Cabin Doors

Product Specifications

Attribute	Value
Material	Stainless Steel / Steel / PVC
Nominal Size	800-2100mm
Part	Hinge
Thickness	Customizable
Water Pressure	0.03-0.1Mpa
Corner	Right angle / Round angle
Model	Quick action, left or right outwards
Type	Fireproof
OEM & ODM Service	Available
Third Party Inspection	Available

Detailed Specifications

Surface Material: Door leaf: PVC-Laminated galvanized sheet or steel sheet with baked paint; Door frame: Steel sheet baked painted
Thickness: Door leaf: 3mm baking varnish steel sheet; Door frame: 8mm steel sheet (baking varnish); Thickness of door leaf: 86mm
Stuffing: Fireproof material
Opening Direction: Outward/Inward
Lock Handle Position: On left/On right
Included Components: Lock, handle, rubber sealing, door closer etc.
Fire Class: H120
Customization: All dimensions available according to client requirements

Technical Specifications

Product No.	Nominal Size	Size of Frame	Cutout in Steel Wall	D	Weight (kg)
ZY-M006-001	700×1700	900×1900	905×1905	T+203	180
ZY-M006-002	750×1750	950×1950	955×1955	T+204	204
ZY-M006-003	800×1800	1000×2000	1005×2005	T+224	224

Applications

Used for bulkheads or combination of bulkhead and ceramic cotton with hydrocarbon fireproof requirements:

Option: Pneumatic or manual operation
Max. Size: 800x2100mm
Core material: Ceramic fibre
Door leaf: 2 or 3mm painted mild steel/stainless steel
Door frame: 3 or 4mm painted mild steel/stainless steel, welded or bolted
Available certificates: GL, DNV, CCS, BV, ABS, LR, KR, RS, etc.

Customization Options

Available in natural finish, primed or coated in accordance with client request. Sizes and colors will be customized according to your requirements.

Package & Delivery

Payment: By T/T (30% deposit T/T in advance, balance 70% cleared before delivery) or Irrevocable L/C at sight
Incoterm: EXW/FCA/FOB, C&F/CIF
Package: Pallet with film packing or according to customer's requirement
Lead time: Within one month for one 20'GP
Shipment: 20'GP, 40'GP, 40'HQ, 40'OT or in bulk

Quality Guarantee

Product Range: All marine outfittings, equipments and facilities etc.
Product Design: With strong engineer team, we support design, manufacture, install etc. according to your requirements.
Product Process: Most products are finished in our own manufacture bases, ensuring quality and delivery time.
Product Inspection: Double inspection ensures complete quality guarantee.

1. The content of this table doesn't cover all categories. If the item you are looking for is not included, please contact us.

2. All products can be customized accordingly, OEM & ODM available.
