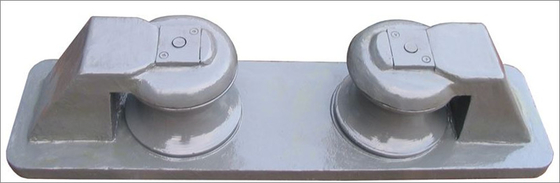

Rope Guider Fairlead Wire Rope Steel Horizontal Roller ISO 13795 - 2015
Steel Rope Guider Fairlead
,Horizontal Roller Rope Guider Fairlead
Rope Guider Fairlead Wire Rope Steel Horizontal Roller ISO 13795 - 2015
Specifications:
1. Marine sheaves are designed for breaking strength of wire with 90 deg wrap on sheave
2. Special sheaves for high performance synthetic ropes are available.
3. Grease lubricate bearing for longer life.
4. Material: Carbon steel.
5. Paint: Grey Epoxy Primer, for the middle paint and surface according to your requirement.
Quick Details:
|
Place of Origin:Shanghai China |
Brand Name: Zhiyou |
Model Number: ZY-Z008 |
|
Color: Customized |
Material: Carbon steel or Cast Iron |
SWL:500 Tons |
|
Model: Single/Double/Cross |
OEM & ODM Service: Available |
OEM & ODM Service: Available |
|
Standard: ISO 13795-2015 |
Type: Mooring Ballard |
|
|

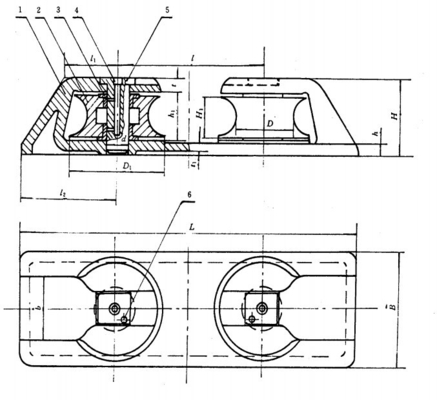

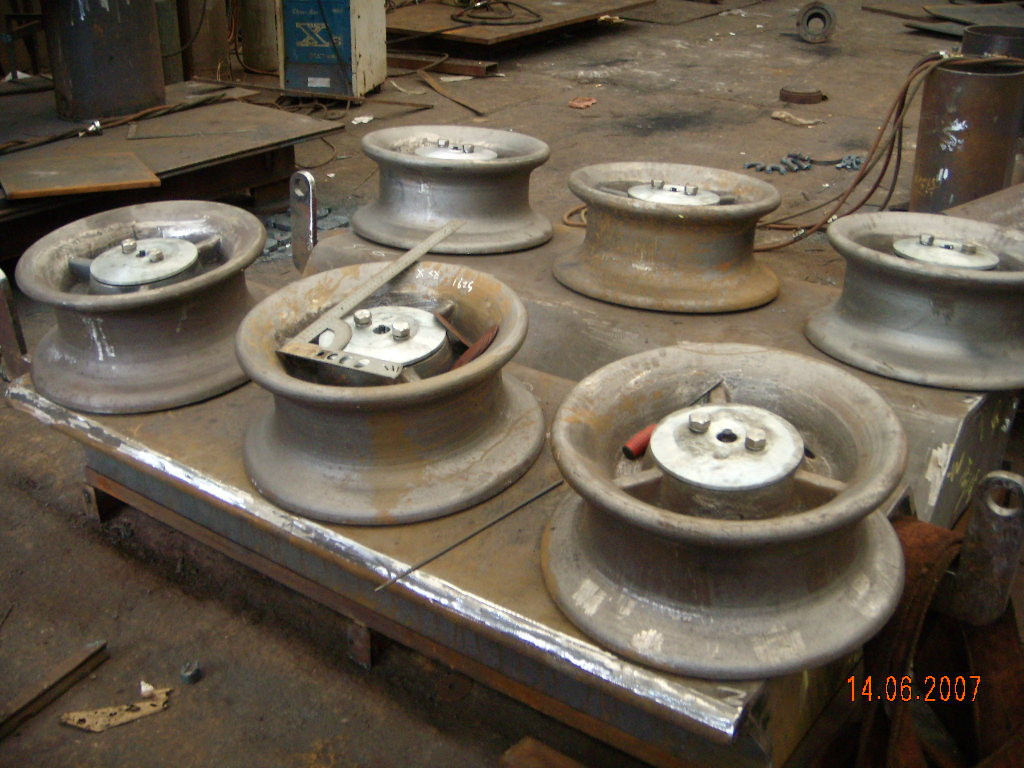

Details for Warping Rollers |
ZHIYOU MARINE |
|
www.marineoutfittings.com |
|
WARPING ROLLERS |
|||||||||||
|
Type |
D |
D1 |
D2 |
d |
d1 |
H |
h1 |
s |
a |
Fa |
Weight |
|
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(KN) |
(KG) |
|
DIN-1 |
160 |
195 |
210 |
60 |
85 |
80 |
50 |
2 |
12 |
10 |
18 |
|
DIN-2 |
200 |
245 |
265 |
70 |
102 |
102 |
50 |
3 |
12 |
20 |
27 |
|
DIN-3 |
250 |
300 |
330 |
85 |
126 |
126 |
50 |
3 |
15 |
32 |
50 |
|
DIN-5 |
320 |
390 |
420 |
106 |
160 |
160 |
50 |
3 |
15 |
50 |
85 |
|
DIN-8 |
400 |
490 |
530 |
125 |
208 |
208 |
60 |
3 |
18 |
80 |
156 |
|
DIN-12 |
450 |
560 |
610 |
160 |
256 |
256 |
85 |
3 |
18 |
125 |
259 |
|
DIN-20 |
500 |
620 |
640 |
190 |
278 |
278 |
100 |
5 |
20 |
200 |
376 |
|
DIN-32 |
560 |
740 |
780 |
230 |
348 |
348 |
150 |
5 |
20 |
320 |
649 |
All products can be customized as your requirement.
1.Fairleader,Roller Fairlead,Fairlead with Horizontal Roller etc.
2.Certificate of GL,DNV,CCS,ABS,BV
3.Material: Steel
4.Design and manufacture according customers' requirements.
|
Package & Delivery& Payment terms |
ZHIYOU MARINE |
|
www.marineoutfittings.com |
Irrevocable L/C at sight
Incoterm: EXW/FCA/FOB, C&F/CIF
Package: Pallet with film packing or according to customer's requirement
Lead time : Within one month for one 20'GP
Shipment : 20'GP, 40'GP,40'HQ, 40'OT or in bulk
|
