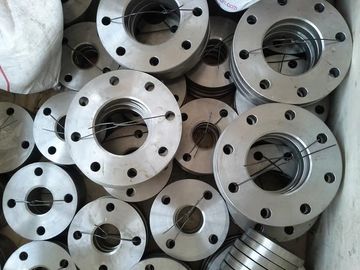

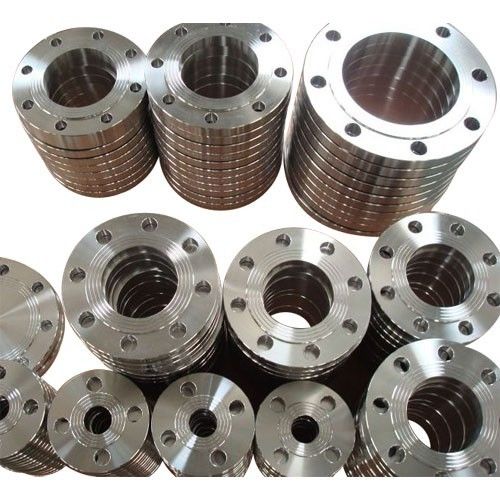

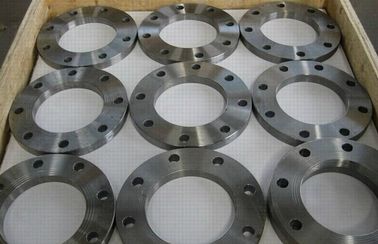

JIS EN1092-1 DIN Processing Machinery Parts Pipe Fitting Flanges SS304/316
General Information:
Flange is a method of connecting pipes, valves, pumps and other equipment to form apipework system. It also provides easy access for cleaning, inspection or modification.Flanges are usually welded or screwed into such systems and then joined with bolts.
|
Details for Flange |
ZHIYOU MARINE |
|
www.marineoutfittings.com |
1) ANSI B16.5, ASME B16.47 FLANGE
Size range: 1/2" to 80" DN15 to DN2000
Design: welding neck, slip on, blind, socket welding, threaded, lap-joint
Pressure: 150#, 300#, 600#,900#,1500#, 2500#
Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS
Material: carbon steel A105, stainless steel 304/304L, 316/316L
Coating: black paint, yellow transparent paint, cold and hot dip galvanize
Package: seaworthy plywood case, wooden pallet
2) EN1092-1 FLANGE
Size range: DN15 to DN2000
Design: type01 plate flange, type02 loose flange, type05 blind flange,
type11 welding necking type12 slip on flange, type 13 threaded flange
Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100
Material: carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L
Coating: black paint, yellow transparent paint, cold and hot dip galvanize
Package: sea worthy plywood case, wooden pallet
3) DIN FLANGE
Size range: DN15 to DN2000
Design: slip on flange DIN2573,2576,2502,2503, 2543,2545
welding neck flange DIN2631, 2632,2633,2634,2635
blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40
threaded flange DIN2565,2566,2567,2567
loose flange DIN 2641,2642,2656,2673
Material: carbon steel ST37.2, stainless steel 1.4301, 1.4404
Coating: rust-proof oil, transparent paint, cold and hot galvanize
Package: sea worthy plywood case, wooden pallet
4) GOST FLANGE
Size range: DN15 to DN 2000
Design : plate flange 12820-80, welding neck flange 12821-80
Pressure: PN6, PN10, PN16, PN25, PN40
Material: carbon steel CT-20, stainless steel 304/304L, 316/316L
Coating: rust-proof oil, cold and hot galvanize
Package: sea worthy plywood case, wooden pallet
5) JIS FALNGE
Size ragne : 15A to 2000A
Design: SOP, BIND, SOH,
Pressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K
Material: carbon steel SS400, stainless steel SUS304, SUS316
Coating : rust-proof oil, cold and hot galvanize
Packing: sea worthy plywood case, wooden pallet
|
