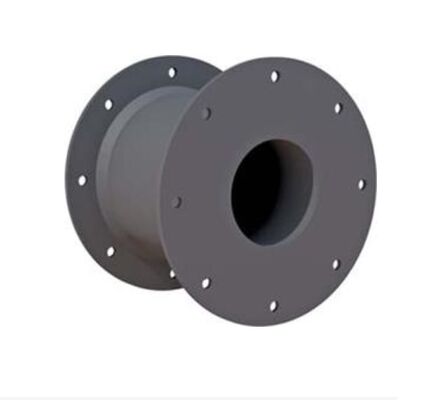

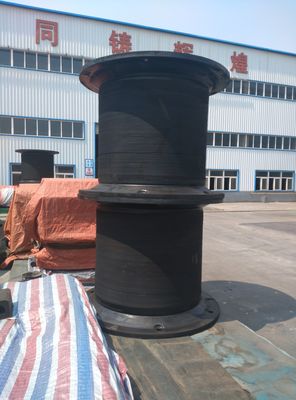

Super Cell Type Rubber Fender
Marine Application Featuring Long Service Life and Low Tilt Compression for Port Fendering
Marine super cell type fenders are widely installed in large marine ports due to their high energy absorption per unit weight and low tilt compression performance. These fender systems are typically equipped with frontal frames consisting of steel panels and UHMW-PE face pads, which significantly reduce face pressure on ship panels and friction coefficients. Super cell type fenders are available in a comprehensive range of sizes from 400mm to 3000mm height.
Key Features
- Low reaction force with high energy absorption capability
- Structural design enables superior force absorption and extended service life
- Ideal for petroleum, oil, and coal port applications
Specifications & Dimensions
SC Cell Type Fender | ZHIYOU MARINE
www.marineoutfittings.com
| Type |
H |
h |
D1 |
D2 |
n-Φd |
MD |
h1 |
L |
| YGCH400 | 400 | 25 | 550 | 650 | 4-Φ30 | 22 | 10 | 270 |
| YGCH500 | 500 | 25 | 550 | 650 | 4-Φ32 | 24 | 12 | 300 |
| YGCH630 | 630 | 30 | 700 | 840 | 4-Φ39 | 30 | 14 | 330 |
| YGCH800 | 800 | 30 | 900 | 1050 | 6-Φ40 | 32 | 14 | 360 |
| YGCH1000 | 1000 | 35 | 1100 | 1300 | 6-Φ47 | 39 | 18 | 430 |
| YGCH1150 | 1150 | 40 | 1300 | 1500 | 6-Φ50 | 42 | 22 | 500 |
| YGCH1450 | 1450 | 47 | 1650 | 1850 | 6-Φ61 | 52 | 26 | 570 |
| YGCH1600 | 1600 | 50 | 1800 | 2000 | 8-Φ61 | 52 | 28 | 570 |
| YGCH1700 | 1700 | 55 | 1900 | 2100 | 8-Φ66 | 56 | 30 | 620 |
| YGCH2000 | 2000 | 55 | 2000 | 2200 | 8-Φ74 | 64 | 32 | 700 |
| YGCH2250 | 2250 | 60 | 2300 | 2550 | 10-Φ74 | 64 | 36 | 700 |
| YGCH2500 | 2500 | 70 | 2700 | 2950 | 10-Φ74 | 64 | 38 | 700 |
| YGCH3000 | 3000 | 75 | 3150 | 3350 | 12-Φ90 | 76 | 40 | 800 |
Unit: mm
Package, Delivery & Payment Terms
ZHIYOU MARINE
www.marineoutfittings.com
Payment: T/T (30% deposit in advance, 70% balance before delivery) or Irrevocable L/C at sight
Incoterm: EXW/FCA/FOB, C&F/CIF
Package: Pallet with film packing or according to customer requirements
Lead Time: Within one month for one 20'GP
Shipment: 20'GP, 40'GP, 40'HQ, 40'OT or in bulk
Our Service
ZHIYOU MARINE
www.marineoutfittings.com
Zhiyou has extensive OEM experience with reputable companies, ensuring technical advantages through precise design. Our marine and offshore products are designed according to ABS, CCS, BV, LR, DNV, NK, KR, and other international standards. We prioritize customer satisfaction by meeting standards and requirements while considering cost efficiency, delivering maximum value at minimum cost.
Punctual Delivery: Integrated production scheduling with regular progress updates and prompt shipping notifications.
After-Sales Service: 24-hour response time, strict warranty adherence, and comprehensive maintenance services.
Professional Design & Solutions: Experienced engineering team providing satisfactory designs, bid assistance, and efficient technical support.
Quality Guarantee
ZHIYOU MARINE
www.marineoutfittings.com
Product Range: Comprehensive marine outfittings, equipment, and facilities
Product Design: Strong engineering team supporting design, manufacture, and installation according to customer requirements
Product Process: Majority of manufacturing completed in-house for quality and delivery control
Product Inspection: Double inspection system ensuring complete quality assurance
Our Related Products
ZHIYOU MARINE
www.marineoutfittings.com
OUR PRODUCT RANGE
| Category |
Product Types |
| 1. Marine Door | Watertight, Fireproof, Quick Action, Weather Tight, Airtight & Sound-reduction, Hydraulic Watertight, Hollow Cabin Door |
| 2. Marine Windows | Fixed, Skylight, Porthole, Sliding, Watertight, Fireproof, Louver & Cabin Shutters |
| 3. Hatch Cover & Man Hole | Sliding, Watertight Manhole Cover, Bolted Watertight, Suez Canal Light, Quick Action, Type A B C D, Rotating Oil Tight |
| 4. Mooring Component | Marine Bollards, Fairlead, Mooring Roller, Mooring Chock |
| 5. Marine Steel Product | Seamless Steel Pipe, Seam Steel Pipe, Marine Crane, Marine Stern Roller, Marine Fender Rubber Cylinder, Steel Structure, API Pipe |
| 6. Marine Propeller & Shaft | Rudder System, Propeller, Rudder Shaft Sealing Component, Rudder Blade, Rudder Carrier Bearing, Rudder Stock/Pintle Sealing Apparatus, Fin Stabilizer |
| 7. Marine Deck Equipment | Mooring Winch, Crane, Windlass, Capstan, Rope Guider, Cable Lifter |
| 8. Rubber Elements | Rubber Fenders, Pneumatic Fender, Ship Launching Airbag, Rubber Sealing Strip, Quay Fenders, Drain Airbag |
| 9. Pressure Vessel Tank | Anti-Corrosion Pressure, Fermentation Tank, Low Temperature Pressure, Compressor Air Tank, Oil & LPG Tank, Vacuum Tank, Foam Buffer Tank |
| 10. Marine Boarding Ladder & Gangplank | Boarding Ladder, Draft Ladder, Lifesaving Ladder, Vertical Access Ladders, Embarkation Ladder, Accommodation Ladder, Gangplank |
| 11. Welding Material | E6013, E7018, E7024, E7018-1, E308L-16, E347L-16, E309L-16 |
| 12. Metal Processing Machinery Parts | Custom machinery parts and fittings manufactured according to customer drawings and specifications using lathes, milling machines, planing machines, and drills |
NOTES:
1. This table does not cover all product categories. Please contact us if you cannot find your required item.
2. All products can be customized accordingly. OEM & ODM services available.
