| Material: | Marine Steel | Nominal Size: | 1200×600--1800×900mm |
|---|---|---|---|
| Part: | Hinge | Thickness: | 6/ 8 / 10 Mm |
| Clip: | 4,6,8 | Type: | Weathertight |
| OEM & ODM Service: | Available | Third Party Inspection: | Or Other Available Inspection |
| Key Words: | Ship's Rail Doors/accommodation Doors | Approval: | CCS,BV,ABS, LR Etc |
| Highlight: | ship watertight door,fireproof cabin door |
||
| Attribute | Value |
|---|---|
| Material | Marine steel |
| Nominal Size | 1200×600--1800×900mm |
| Part | Hinge |
| Thickness | 6/8/10 mm |
| Clip | 4,6,8 |
| Type | Weathertight |
| OEM & ODM Service | Available |
| Third Party Inspection | or other available inspection |
| Approval | CCS,BV,ABS,LR etc |

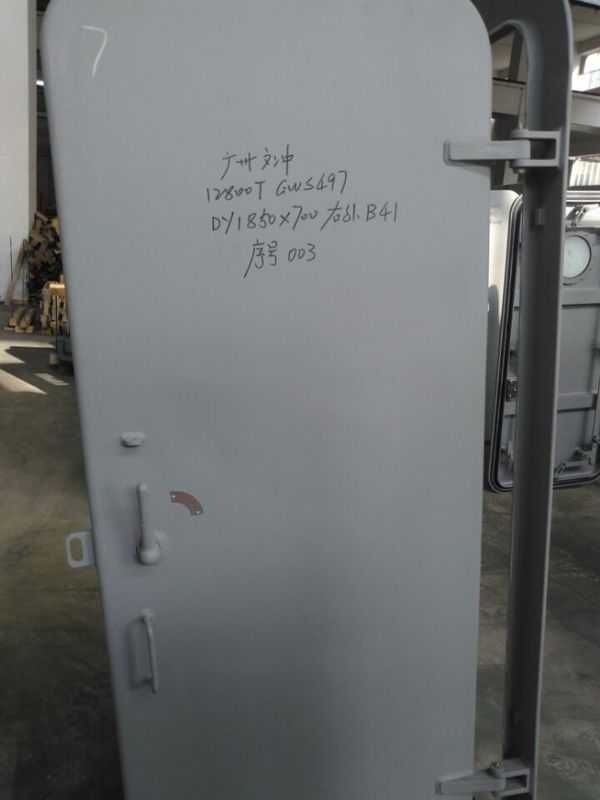

Zhiyou Marine specializes in manufacturing high-quality marine access doors, exporting to countries worldwide with particular success in Southeast Asia and Latin America. Our marine weathertight steel doors are designed for freeboard decks and deck houses, serving as cabin doors, engine room doors, storage doors, and food storage doors.
| Item | Details |
|---|---|
| Material | Marine Steel |
| Opening Type | Clip Opening, Single Handle Opening |
| Standard | GB/T 3477-2008 |
| Opening Direction | Left or right and outside (as per client requirements) |
| Size | Customizable to client specifications |
| NO. | NOMINAL SIZE (L×B×R100) | CUTTING SIZE(L1×B1×R150) | EXTERNAL SIZE(L2×B2×R200) | OPENING DIRECTION |
|---|---|---|---|---|
| 1 | 1200×600 | 1300×700 | 1400×800 | R & L |
| 2 | 1400×600 | 1500×700 | 1600×800 | R & L |
| 3 | 1400×700 | 1500×800 | 1600×900 | R & L |
| 4 | 1500×600 | 1600×700 | 1700×800 | R & L |
| 5 | 1500×700 | 1600×800 | 1700×900 | R & L |
| 6 | 1600×600 | 1700×700 | 1800×800 | R & L |
| 7 | 1600×700 | 1700×800 | 1800×900 | R & L |
Note: Custom dimensions available through our OEM & ODM services.
| Payment Terms | 30% deposit T/T in advance, balance 70% before delivery or Irrevocable L/C at sight |
|---|---|
| Incoterm | EXW/FCA/FOB, C&F/CIF |
| Package | Pallet with film packing or according to customer's requirement |
| Lead Time | Within one month for one 20'GP |
| Shipment | 20'GP, 40'GP, 40'HQ, 40'OT or in bulk |
Our comprehensive marine outfittings include:
Marine doors are closing devices for ship entrances, typically installed via welding or bolting. They serve various functions including watertight, weathertight, fireproof, and soundproof applications.
Weathertight doors are outer accommodation doors designed to be weatherproof, typically tested with water flushing to verify their sealing capability.
Our doors meet international standards and can be inspected by third parties. We provide classification society certificates including ABS, CCS, DNV, LR, and NK approvals.
We support custom designs and specifications, with extensive experience serving global clients through our Shanghai-based manufacturing facility.
Note: All products can be customized. Contact us for items not listed or for specific requirements.
