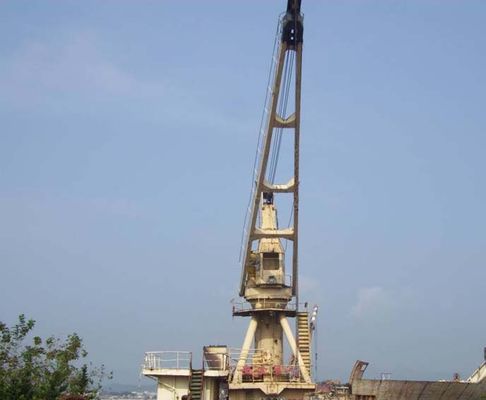

Galvanized Marine Crane with Customizable Length and Third Party Inspection for Shipyard and Bulk Carrier Applications
Detailed Product Description
| Outer Diameter: |
6 - 710 Mm |
Surface Treatment: |
Galvanized |
| Type: |
Seamless Pipe And Weld |
Material: |
Steel Construction With Technical Welding |
| Length: |
As Customer's Requirement |
Test: |
Squash, Extended, Water Pressure, Crystal |
| Application: |
Gas Pipe,handrail, Railing, Staircase, Bench,furniture,etc |
OEM Or ODM Service: |
Available |
| Third Party Inspection: |
Or Other Available Inspection |
Category: |
Marine Outfitting Equipment |
| Key Words: |
Crane/shipyard/general Cargo Crane/bulk Carrier |
| Highlight: |
marine stainless steel hardware, marine steel plate |
Steel Welding Shipbuilding Gantry New Bulk carrier Marine Crane
Product Overview
Steel Welding Shipbuilding Gantry New Bulk carrier Marine Crane - a comprehensive solution for shipyard and marine applications with versatile functionality and robust construction.
Available Crane Types
- Shipyard Gantry Crane
- Shipyard Pedestal Crane
- Rail-mounted Shipyard Crane
- Box-type Boom Offshore Crane
- Lattice-type Boom Offshore Crane
- Hydraulic Knuckle Boom Crane
- Knuckle/Telescopic Boom Crane
- Telescopic Boom Crane
- Yacht Crane
- Hydraulic Pipe Handling Crane
- General Cargo Crane
Key Features
- Multiple functions including single hanging, hoisting, turnover in the air, and slight horizontal turnover
- Available in single girder and double girder models with optimized variable section design
- Upper crab features two main hooks fixed outside the girder with stronger hook design
- Lower crab trolley with main and secondary hooks fixed at girder center
- Independent operation capability for both upper and lower crab trolleys
- Frequency-controlled operating mechanisms for precise speed and efficiency
- Jib crane installation for maintenance of upper and lower crabs
- Optional wire rope electric hoist for maintenance work
- Comprehensive anti-wind protection with rail clamps and ground anchors
Technical Specifications
| Parameter |
Unit |
FC5 |
FC8 |
FC10 |
FC16 |
FC20 |
FC35 |
| Rated capacity |
t |
5 |
8 |
10 |
16 |
20 |
35 |
| Working Radius |
m |
6.5-16 |
6.5-16 |
6.5-16 |
6-14 |
6-14 |
7.5-19 |
| Lifting height (above deck) |
m |
10 |
10 |
10 |
8 |
8 |
12 |
| Lifting height (below deck) |
m |
6 |
6 |
6 |
6 |
6 |
6 |
| Lifting speed (hook) |
m/min |
22 |
22 |
22 |
15 |
12 |
7 |
| Lifting speed (grab bucket) |
m/min |
50 |
50 |
50 |
40 |
35 |
30 |
| Derricking Speed |
m/min |
20 |
20 |
20 |
18 |
16 |
16 |
| Rotational speed |
m/min |
1.7 |
1.7 |
1.7 |
1.5 |
1.4 |
0.8 |
| Installed capacity (hook) |
kw |
48 |
63 |
82 |
97 |
105 |
130 |
| Installed capacity (grab bucket) |
kw |
63 |
85 |
104 |
119 |
135 |
160 |
Detailed Specifications
| Product name |
Marine Crane |
| Load capacity |
0-80 tons |
| Lifting height |
0-35m |
| Slewing speed |
0-1.0r/s |
| Lifting speed |
0-10m/min (stepless speed) |
| Max/Min working radius |
As per your requirements |
| Slewing degree |
>360° |
| Max inclination |
(Heeling) 5°/ (trim) 2° |
| Power supply |
As per your requirements |
| Design temperature |
-10°C < T < +45°C |
| Wind speed |
Max (working): 20m/s Max (no-working): 50m/s |
| Control |
Manual platform or cabin or remote controller |
| Certificate |
CCS |
| Delivery time |
Within 20 to 30 days, according to customer's order |
Performance Features
- Smooth operation with variable speed rates
- 360-degree rotation capability
- Electro-hydraulic and manual control options
- Convenient operation with safety and reliability
Applications
Suitable for ports, wharfs, freight yards, and explosion-proof environments. Ideal for ship installation and capable of handling dangerous cargoes. Can function as a hose crane for product oil operations in chemical docks or as a marine crane when installed on ships. Perfect for locations with moderate loading and unloading operations. Available with lifting hooks and grab buckets as per customer requirements.
Customization Available: All products can be customized according to your specific requirements.
Additional Marine Products
- Aluminum alloy rectangular window (Fixed type)
- Aluminum alloy side scuttle (Opening type)
- Welted-in brass rectangular window (Opening type)
- Bolted-in aluminum alloy rectangular window (Opening type)
- Welted-in fire side scuttle
- Welted-in rectangular fire window
- Bolted-in fire side scuttle
- Bolted-in rectangle fire window
Marine Window Types
- OTB: Out-upward opened type
- ITB: In-upward opened type
- NOB: Fixed type
- OLB: Outward left opened
- ORB: Outward right opened
- ILB: Inward left opened
- IRB: Inward right opened
Packaging & Delivery
| Package |
Bundle packing with beveled/plain/varnished ends as required. Custom marking, painting varnish coating, and plastic end caps. |
| Delivery time |
Within 20 to 30 days, according to customer's order |
| Shipment |
20'GP, 40'GP, 40'HQ, 40'OT or in bulk |
Our Service Commitment
- Punctual Delivery: Tight production scheduling with regular updates and immediate shipping notifications
- After-Sales Support: Quick feedback response, installation guidance, and global service availability
- Professional Sales Team: 24-hour online support, competitive offers, and tender cooperation with complete documentation
Quality Assurance
- Product Range: Comprehensive marine equipment and technical solutions
- Product Design: Strong engineering team supporting design, manufacture, and installation
- Production Process: Majority of products finished in our manufacturing bases for quality control
- Product Inspection: Factory inspection and certification support available
