AWS A5.4 E308L-16 EN1600 E19 9 L R 3 2 Welding Material For Extra-Low Carbon Stainless Steel
Product Overview
AWS E308L-16 is a lime titanium type welding rod designed for extra-low carbon stainless steels. The weld metal provides excellent resistance to inter-crystal corrosion due to carbon content ≤0.04%. Suitable for all position welding applications.
Applications
Ideal for welding extra-low carbon stainless steel 00Cr19Ni10 (304L) and 0Cr18Ni10Ti stainless steel structures requiring corrosion resistance at temperatures below 300°C. Primarily used in synthetic fiber, fertilizer, petroleum, and chemical industry equipment.
Technical Specifications
| Parameter |
Details |
| Brand Name |
ZHIYOU |
| Model No. |
AWS E308L-16 |
| Diameter |
2.5mm, 3.2mm, 4.0mm, 5.0mm or custom |
| Length |
300mm, 350mm, 400mm, 450mm or custom |
| Operating Current |
AC, DC |
| Type of Coating |
Extra low carbon lime titania |
| Color |
Gray, green, white, red |
| Certificates |
ICE, BV |
Chemical Composition of Deposited Metal (%)
| Element |
Standard |
Typical |
| C |
≤0.04 |
0.029 |
| Mn |
0.50-2.5 |
0.86 |
| Si |
≤0.9 |
0.63 |
| S |
≤0.03 |
0.012 |
| P |
≤0.03 |
0.024 |
| Ni |
9.0-11.0 |
9.6 |
| Cr |
18.0-21.0 |
19.8 |
| Mo |
≤0.75 |
0.078 |
| Cu |
≤0.75 |
0.01 |
Mechanical Properties of Deposited Metal
| Property |
Standard |
Typical |
| Tensile Strength Rm (MPa) |
≥520 |
575 |
| Elongation A4 (%) |
≥35 |
46 |
Size, Pieces & Recommended Current
| Size (mm) |
Pieces (2KG) |
Current F,H (A) |
Current OH,VD (A) |
| 2.0×300 |
≈172 |
30-50 |
30-50 |
| 2.5×300 |
≈110 |
60-85 |
50-70 |
| 3.2×350 |
≈57 |
85-120 |
75-105 |
| 4.0×400 |
≈33 |
115-160 |
95-130 |
| 5.0×450 |
≈22 |
160-200 |
－ |
Product Features
- Stable arc with fewer spatters
- Easy to restrike
- Reduced smog generation
- Excellent slag removal
- Manufacturer direct supplier with ZHIYOU brand
- Standard quality with competitive pricing
- Powerful supply capacity
- Overseas after-sales service
- Professional R&D and experienced management team
Welding Instructions
Before welding, ensure weld metal is free from impurities including oil, rust, and moisture. Electrodes should be baked at 300-350°C for 1 hour. Use small current and short arc during welding with swaying broad less than 2.5 times the core rod diameter.
Packaging Details
| Size |
Packing |
| 2.5mm × 300mm |
2.5kgs/box, 8 boxes/carton = 20kgs |
| 3.2mm × 350mm |
5.0kgs/box, 4 boxes/carton = 20kgs |
| 4.0mm × 400mm |
5.0kgs/box, 4 boxes/carton = 20kgs |
| 5.0mm × 400mm |
5.0kgs/box, 4 boxes/carton = 20kgs |
Inner box is shrink-wrapped cardboard. Available on pallets (1MT/pallet or 2.5MT/pallet). OEM packaging available upon request.

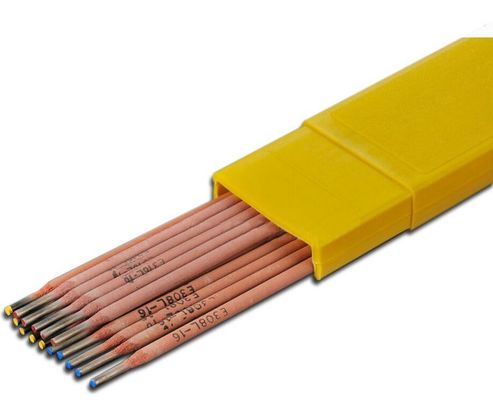

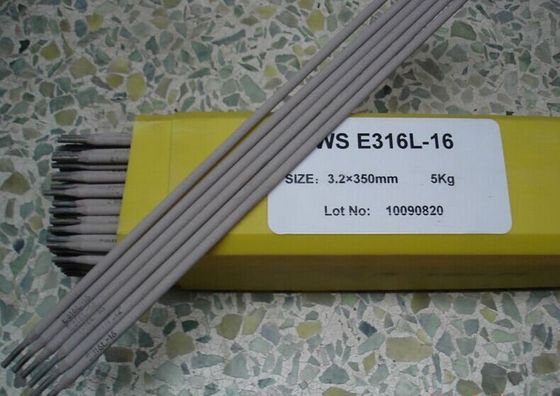

Product Images
Ordering & Delivery
Payment Terms: 30% T/T deposit, 70% balance before shipment/against copy B/L
Delivery Time: Within 20 days upon receipt of deposit
Incoterms: EXW/FCA/FOB, C&F/CIF
Shipment: 20'GP, 40'GP, 40'HQ, 40'OT or bulk
Quality Assurance
All products undergo double inspection to ensure complete quality guarantee. Manufactured in our own production facilities to maintain quality control and delivery timelines.
Note: The product range covers all marine outfittings, equipment and facilities. All products can be customized accordingly with OEM & ODM services available.
