Product Details:
Payment & Shipping Terms:
|
| Product Name:: | Impingement Baffle, Rubber Fender Sheet | Material: | UHMWPE , UHMW And Marine Steel |
|---|---|---|---|
| Size: | Customized | Life-Span: | 15 Years |
| OEM& ODM Service: | Available | Third Party Inspection: | Or Other Available Inspection |
| Application: | Ship Alongside,port,docking | Key Words: | Impingement Baffle,Impingement Plate |
| High Light: | boat dock fenders,cylindrical rubber fenders |
||

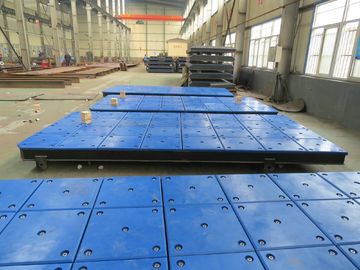

This type Impingement Baffle assembly of a rubber fender, which comprises a steel structure and a plurality of plastic laminated boards, wherein the plastic laminated boards are made of ultrahigh molecular weight polyethylene, each plastic laminated board is respectively and tightly fastened on the outer side surface of the steel structure through plastic board fastening screw bolts, and the plastic laminated boards are mutually matched for forming an impingement baffle part, and the impingement baffle part is in a structure with the inclined periphery and the circular arc double turning corners in the transition fit. It can reduce the friction force between a ship body and the surface of the rubber fender, reduce the surface pressure exerted on a ship side board, reduce the mooring shearing force, and improve the service life of the rubber fender.
|
Specifications & Dimensions for Impingement Baffle |
ZHIYOU MARINE |
|
www.marineoutfittings.com |
Advantages:
1. Non-Toxic and smell
2. Low coefficient of friction
3. Corrosion resistant
4. Abrasion and impact resistant
5. Anti-Weather and Anti-Aging
6. Self-lubricating
7. Wear Resistant
8. UV Resistant/ultraviolet-resistance sheet
9. Can be used under HighTemperature
10. High Tensile Strength
11. High Viscosity
12. Flame Retardant
Impingement Baffle material properties
| Item | Test result | Unit |
| Density | 0.93-9.98 | g/cm3 |
| Tensile strength | 25-28 | Mpa |
| Compression strength | 30-35 | Mpa |
| Elongation at break | 270-360 | % |
| Shore D hardness | 62-66 | HD |
| Coefficient of friction | 0.12-0.16 | |
| Notched Impact strenth charpy | 85-120 | kJ/mm2 |
Standard size of Impingement Baffle(other size can be customized):
2000*1000*(6-300) mm 3000*1500*(6-300) mm
3050*1220*(6-300) mm 4500*2000*(6-300) mm
4700*1200*(6-300) mm 5000*1300*(6-300) mm
|
Package & Delivery& Payment terms |
ZHIYOU MARINE |
|
www.marineoutfittings.com |
|
Our Service |
ZHIYOU MARINE |
|
www.marineoutfittings.com |
Zhiyou has been doing OEM job for many reputable companies for many years, which makes the best guaranty for Zhiyou technical advantages with precise design. Zhiyou Marine& Offshore is designed according to ABS CCS BV LR DNV NK KR etc standard.In line with the responsibility spirit for customers, we try to satisfy the standards and the customers’ requirement in the process of designing and manufacturing process, as well as fully consider the basic cost. The products we providing will guarantee the quality and reasonable price, which ensure our cooperated customers can get the maximum value
and minimum cost.
1) Punctual delivery:
• We put your order into our tight production schedule, keep our client informed about production
process,
ensure your punctual delivery time.
• Shipping notice/ insurance to you as soon as your order is shipped.
|
Quality Guarantee |
ZHIYOU MARINE |
|
www.marineoutfittings.com |
|
Our Related Products |
ZHIYOU MARINE |
|
www.marineoutfittings.com |
OUR PRODUCT RANGE
| 1 | Marine door | Watertight | Fireproof | Quick action | Weather tight | Airtight&Sound-reduction | Hydraulic Watertight | Hollow Cabin Door |
| 2 | Marine windows | Fixed | Skylight | Porthole | Sliding | Watertight | Fireproof |
Louver& Cabin Shutters |
| 3 | Hatch cover& man hole | Sliding | Watertight Manhole Cover | Bolted watertight | Suez Canal Light | Quick action | Type A B C D | Rotating Oil tight |
| 4 | Mooring component | Marine bollards | Fairlead | Mooring roller | Mooring chock | |||
| 5 | Marine steel product | Seamless steel Pipe | Seam steel pipe | Marine crane | Marine Stern Roller | Marine fender rubber cylinder | Steel structure | API pipe |
| 6 | Marine propeller& shaft | Rudder System | propeller | Rudder shaft sealing component | Rudder blade | Rudder carrier bearing | Rudder stock/pintle sealing apparatus | Fin stabilizer |
| 7 | Marine deck equipment | Mooring winch | Crane | Windlass | Capstan | Rope Guider | Cable lifter | |
| 8 | Rubber elements | Rubber fenders | Pneumatic fender | Ship launching airbag | Rubber sealing strip | Quay fenders | Drain airbag | |
| 9 | Pressure vessel tank | Anti- Corrosion pressure | Fermentation tank | Low temperature pressure | Compressor air tank | Oil& LPG tank | Vacuum tank | Foam buffer tank |
| 10 | Marine boarding ladder& gangplank | Boarding ladder | Draft ladder | Lifesaving ladder | Vertical access ladders | Embarkation ladder |
Accom modation ladder |
Gangplank |
| 11 | Welding material | E 6013 | E 7018 | E 7024 | E 7018-1 | E 308L-16 | E 347L-16 | E 309L-16 |
| 12 | Metal Processing Machinery Parts | Machinery Parts or fittings can be designed as your drawings or detailed requirements, and processed by lathes, milling machines, planing machines, drills. | ||||||
NOTES:
1. The content of this table doesn't cover all catagories, providing that the item you are looking for is not included hereof, please feel free to contact us.
2. All the products shall be customerized accordingly, OEM&ODM available.
