Customized UHMW - PE Face Pads For Impingement Bolt Mounting

China Customized UHMW - PE Face Pads For Impingement Bolt Mounting supplier
Customized UHMW - PE Face Pads For Impingement Bolt Mounting supplier Customized UHMW - PE Face Pads For Impingement Bolt Mounting supplier Customized UHMW - PE Face Pads For Impingement Bolt Mounting supplier

Large Image :  Customized UHMW - PE Face Pads For Impingement Bolt Mounting

Product Details:

Place of Origin: Shanghai China
Brand Name: Zhiyou
Certification: ABS, LR, BV, NK
Model Number: ZY-R022

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Pallet with film packing or according to customer's requirement
Delivery Time: Within 20 to 30 days, According to customers's order
Payment Terms: L/C, T/T
Supply Ability: 500pcs/Month
Detailed Product Description
Product Name:: Impingement Baffle, Rubber Fender Sheet Material: Rubber
Size: Customized Life-Span: 15 Years
OEM& ODM Service: Available Third Party Inspection: Other Available Inspection
Application: Ship Alongside,port,docking Key Words: Impingement Baffle,Impingement Plate
Abrasion Resistance: High Chemical Resistance: High
Color: Black Corrosion Resistance: High
Durability: High Impact Resistance: High
Installation: Easy Pressure Resistance: High
Shape: Cylindrical Temperature Resistance: High
UV Resistance: High Weight: Lightweight
High Light:

boat dock fenders


marine rubber fender

Customized UHMW - PE Face Pads For Impingement Bolt Mounting

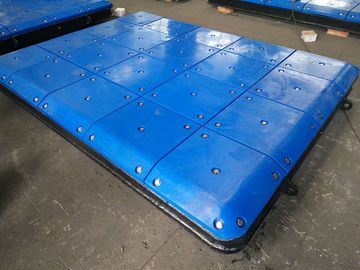

Impingement Sheet(Impingement Baffle) is ideal for ship berths, waterways and lock entrances and as components in larger fender installation. It comprises a steel structure and a plurality of plastic laminated boards, wherein the plastic laminated boards are made of ultrahigh molecular weight polyethylene, each plastic laminated board is respectively and tightly fastened on the outer side surface of the steel structure through plastic board fastening screw bolts, and the plastic laminated boards are mutually matched for forming an impingement baffle part, and the impingement baffle part is in a structure with the inclined periphery and the circular arc double turning corners in the transition fit. It can reduce the friction force between a ship body and the surface of the rubber fender, reduce the surface pressure exerted on a ship side board, reduce the mooring shearing force, and improve the service life of the rubber fender.


Specifications & Dimensions for Impingement Baffle





1. Non-Toxic and smell
2. Low coefficient of friction
3. Corrosion resistant
4. Abrasion and impact resistant
5. Anti-Weather and Anti-Aging
6. Self-lubricating
7. Wear Resistant
8. UV Resistant/ultraviolet-resistance sheet
9. Can be used under HighTemperature
10. High Tensile Strength
11. High Viscosity
12. Flame Retardant


Impingement Baffle material properties


Item Test result Unit
Density 0.93-9.98 g/cm3
Tensile strength 25-28 Mpa
Compression strength 30-35 Mpa
Elongation at break 270-360 %
Shore D hardness 62-66 HD
Coefficient of friction 0.12-0.16
Notched Impact strenth charpy 85-120 kJ/mm2


Standard size of Impingement Baffle(other size can be customized):


2000*1000*(6-300) mm 3000*1500*(6-300) mm

3050*1220*(6-300) mm 4500*2000*(6-300) mm

4700*1200*(6-300) mm 5000*1300*(6-300) mm


Customized UHMW - PE Face Pads For Impingement Bolt Mounting 0


Package & Delivery& Payment terms



Payment :  By T/T(30% deposit T/T in advance, balance 70% cleared out before delivery) or
                  Irrevocable L/C at sight

Incoterm:   EXW/FCA/FOB, C&F/CIF
Package: Pallet with film packing  or according to customer's requirement
Lead time : Within one month for one 20'GP
Shipment : 20'GP, 40'GP,40'HQ, 40'OT or in bulk

Our Service



Zhiyou has been doing OEM job for many reputable companies for many years, which makes the best guaranty for Zhiyou technical advantages with precise design. Zhiyou Marine& Offshore is designed according to ABS CCS BV LR DNV NK KR etc standard.In line with the responsibility spirit for customers, we try to satisfy the standards and the customers’ requirement in the process of designing and manufacturing process, as well as fully consider the basic cost. The products we providing will guarantee the quality and reasonable price, which ensure our cooperated customers can get the maximum value

and minimum cost.
1) Punctual delivery:
• We put your order into our tight production schedule, keep our client informed about productionprocess,

 ensure your punctual delivery time.
• Shipping notice/ insurance to you as soon as your order is shipped.

 2) Services after sales:
• An reasonable solution and/or response to any inquiry shall be provided within 24hrs upon receipt of it.
• Terms and conditions of warranty shall be strictly abide by.
• Maintenance service shall be provided accordingly
3) Professional design and efficient solution:
• Our experienced engineers and experts guaranteed our customer with satisfactory design & solution
• Rich experiences in various bids assistance including documentary support
• Efficient solution providing through our professional designer and technical supporter

Quality  Guarantee



Product Range:  All marine outfittings, equipments and facilities etc
Product Design:  With strong engineer team, for all marine products, we support design, manufacture,
 install etc, according to your requirements. All products strictly conform to your confirmation.
Product Process:  Most of products are finished in our own manufacture bases, thus quality and
delivery time could safely guaranteed and also avoid indirect troubles
Product Inspection: Double inspection make sure quality guaranteed completely.
