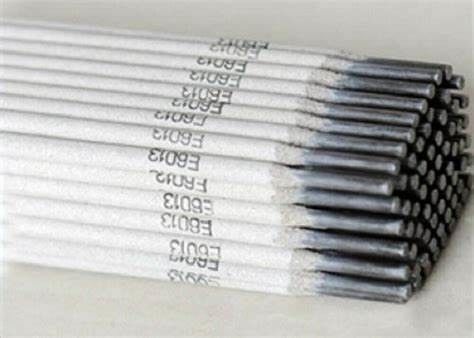

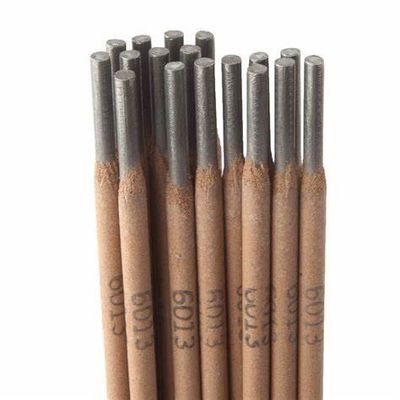

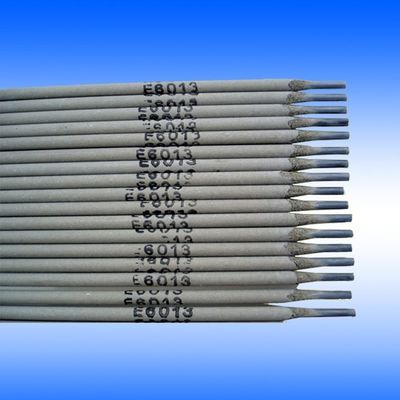

Dia 2.0mm Mild Steel Electrode Rod AWS E6013 300mm Length

China Shanghai Zhiyou Marine & Offshore Equipment Co.,Ltd. certification
China Shanghai Zhiyou Marine & Offshore Equipment Co.,Ltd. certification
I'm Online Chat Now

Dia 2.0mm Mild Steel Electrode Rod AWS E6013 300mm Length

China Dia 2.0mm Mild Steel Electrode Rod AWS E6013 300mm Length supplier
Dia 2.0mm Mild Steel Electrode Rod AWS E6013 300mm Length supplier Dia 2.0mm Mild Steel Electrode Rod AWS E6013 300mm Length supplier Dia 2.0mm Mild Steel Electrode Rod AWS E6013 300mm Length supplier

Large Image :  Dia 2.0mm Mild Steel Electrode Rod AWS E6013 300mm Length

Product Details:

Place of Origin: Shanghai China
Brand Name: Zhiyou
Certification: CE,BV,ISO9001
Model Number: AWS E6013, ISO2560-B-E43 13A

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 20 days for one 20' container
Payment Terms: L/C, T/T
Supply Ability: 5000Tons/Month
Contact Now
Detailed Product Description
Product Name: Welding Electrode Material: Steel
Lenght: 300mm, 350mm, 400mm Diameter: 2.0mm, 2.5mm,3.2mm, 4.0mm, 5.0mm, 5.8mm
Type: Wire Rob For Welding Electrodes Application: Weld Carbon Steel
Free Sample: Available Key Words: Welding Rod/AWS E6013, ISO2560-B-E43 13A
High Light:

AWS E6013 Electrode Rod

,

Dia 2.0mm Mild Steel Electrode Rod

,

300mm Length Electrode Rod

Electrode Rod Mild Steel Weld Material AWS E6013 ISO2560 - B - E43 13A

Specifications:

AWS E6013 is a high titania potassium type welding rod with cellulose in casting. Both all position welding and vertical-down welding could be performed. It is suitable for mild steel structures of small workpieces, sheets, and hulls of vehicles, etc.


Quick Details:

Product Name: Mild Steel Welding Rod for Vertical-down Welding --AWS E6013 -- ISO2560-B-E43 13A

Free Sample: Available

Model Number: AWS E6013/2560-B-E43 13A

Material:  Steel

Melting Point:

Application: Weld carbon steel

Diameter:2.0mm,2.5mm,3.2mm.4.0mm,5.0mm, 5.8mm

Type: Wire Rob For Welding Electrodes

Certificate:CE,BV,ISO9001




Details for AWS E6013/ISO 2560-B-E43 13A

ZHIYOU MARINE

www.marineoutfittings.com



Application:



It is suitable for mild steel structures of small workpieces, sheets, and hulls of vehicles, etc.



Note:



Keeping the rods in dry condition and the rods do not need to re-bake before welding.



Chemical Composition of Deposited Metal(%)
  C Mn Si S P Ni Cr Mo V
Standard ≤0.2 ≤1.20 ≤1.00 ≤0.035 ≤0.040 ≤0.30 ≤0.20 ≤0.3 ≤0.08
Typical 0.07 0.41 0.26 0.021 0.023 0.018 0.027 0.002 0.001
Mechanical Properties of Deposited Metal(AW)
  Yield Point Reh(MPa) Tensile Strength Rm (MPa) Elongation A4 (%) Impact Value ( J )
0℃
Standard ≥330 ≥430 ≥17
Typical 420 500 27 70
Size,Pieces & Recommended Current (AC or DC )
Size (mm) 2.5*350 3.2*350 4.0*400 5.0*400
Pieces (5KG) ≈268 ≈163 ≈96 ≈62
Current (A) F, H 60-100 80-150 160-200 180-250
OH, VD 60-90 80-110 150-170

Features of AWS E6013/ISO 2560-B-E43 13A

ZHIYOU MARINE

www.marineoutfittings.com



1. Certificate: CE,

2. Package: 1kg/spool or 5kgs/spool or 15kgs/spool

3. packaging can be changed according to your needs.

4. Sample: free


Dia 2.0mm Mild Steel Electrode Rod AWS E6013 300mm Length 0

Packaging Detail:

e6013 welding electrode rod Size: 2.5MM X 300MM
(Packing : 2.5kg/inner boxes 8 boxes/cartons=20kg)
Size: 3.2MM X 350MM
(Packing: 5.0kg/inner boxes 4boxes/cartons=20kg)
Size: 4.0MM X 400MM
(Packing: 5.0kg/inner boxes 4boxes/cartons=20kg)
one 20' container can load 27MTS , 1350 CARTONS , 20CBM .

Delivery Detail:

20 days for one 20' container

Payment :

 By T/T(30% prepaid as deposit, the balance 70% against copy of B/L )






Package & Delivery& Payment terms

ZHIYOU MARINE

www.marineoutfittings.com

 Dia 2.0mm Mild Steel Electrode Rod AWS E6013 300mm Length 1

 Payment:  By T/T(30% deposit T/T in advance, balance 70% cleared out before delivery) or
                  Irrevocable L/C at sight

Incoterm:   EXW/FCA/FOB, C&F/CIF

Package: Pallet with film packing  or according to customer's requirement

Lead time: Within one month for one 20'GP

Shipment : 20'GP, 40'GP,40'HQ, 40'OT or in bulk
