Product Details:
Payment & Shipping Terms:
|
| Product Name: | Welding Electrode | Usage: | Steel Alloy |
|---|---|---|---|
| Length: | 300mm,350mm,400mm | Operating Current: | 60-90,90-120,120-15 |
| Welding Current: | AC/DC | Diameter: | 0.5-5mm |
| Type: | Metal | Application: | Welding |
| Free Sample: | Available | Key Words: | E308L-16 Welding Electrode/low Carbon Stainless Steel Weldingel Ectrode |
| Corrosion Resistance: | High | Durability: | Excellent |
| Hardness: | High | Material: | Steel |
| Name: | Welding Material | Surface Treatment: | Polishing |
| Tensile Strength: | High | Weldability: | Excellent |
| Highlight: | AWS E308L-16 Welding Material,300mm Stainless Steel Welding Electrodes,Dia 0.5mm Welding Electrodes |
||
|
Product Name: Stainless Steel Welding Electrodes AWS E308L-16 |
Free Sample: Available |
Model Number: AWS E308L-16 |
|
Usage: Steel Alloy |
Length: 300mm,350mm,400mm |
Operating Current:60-90,90-120,120-15 |
|
Application: low carbon mild steel |
Diameter:0.5-5mm |
Certificate:CE,BV,ISO9001 |
|

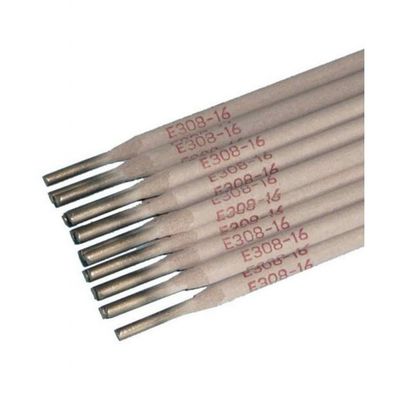

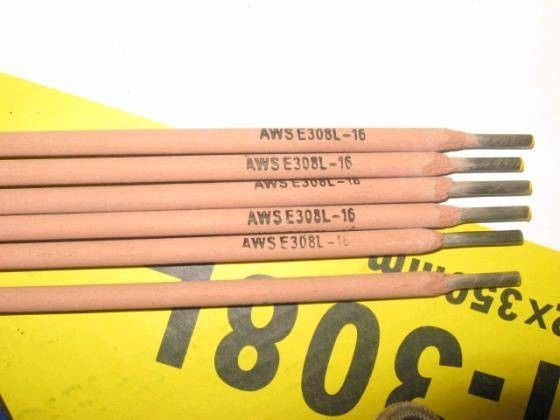

Details for E308L-16 |
ZHIYOU MARINE |
|
www.marineoutfittings.com |
This is low carbon Cr19Ni10 stainless steel type of electrode with Titanium-calcium coating. It provides excellent mechanical performance as well as anti-intercrystalline corrosion performance. It can be operated on both AC and DC with outstanding operation performance.
Application:
It is suitable for the welding structure of super-low carbon Cr19Ni10 stainless steel, It is also suitable for welding the structure of anti-corrosion stainless steel Cr19Ni11Ti which is working temperature below 300 °c, It is mainly used for equipment manufacturing of fiber, fertilizer, and petroleum industry.
Chemical Composition of Wire (%):
|
C |
Mn |
Si |
Cr |
Ni |
Cu |
Mo |
S |
P |
|
|
Example value |
≤0.04 |
0.5-2.5 |
≤0.90 |
18.0-21.0 |
9.0-11.0 |
≤0.75 |
0.75 |
≤0.03 |
≤0.04 |
Mechanical Properties of Deposited Metal:
|
Test Item |
Yield Strength(Mpa) |
Tensile Strength (Mpa) |
Elongation(%) |
AKV(J) |
|
Guarantee Value |
- |
≥520 |
≥35 |
- |
WELDING DIRECTIONS
• For plates below 25 mm pre-heating is not required.
• Plates of thickness over 25mm and castings should be pre-heated at around 100-200ºC.
• Post-heat treatment is not required for steels of similar composition.
• For chromium steel the welded area needs to be covered to bring down the cooling rate.
PRECAUTIONS:
• Electrode must be perfectly dry before use.
• Redrying at 250°C for 1/2 hour is recommended. Cool to 100°C and maintain at 100°C before use.
• To avoid excess heat input, a lower current and shorter arc should be maintained.
• Weld metal should be cleaned only with a stainless steel wire brush.
• For austenitic stainless steel preheating and post-heating are not necessary.
|
