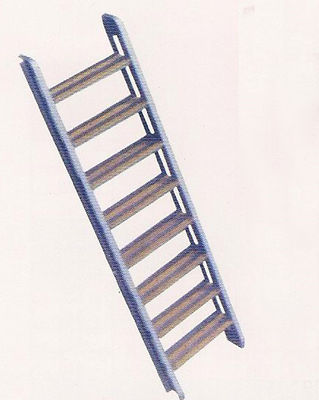

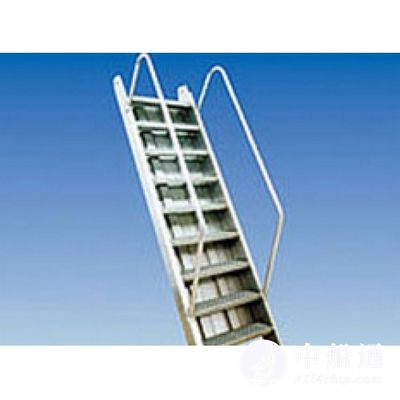

Aluminum Boarding Ladder with 50kgs Max. Load and Customized Size for Swimming Pools

Large Image : Aluminum Boarding Ladder with 50kgs Max. Load and Customized Size for Swimming Pools

Product Details:

Place of Origin:	Shanghai China
Brand Name:	Zhiyou
Certification:	ABS,CCS,BV,RINA,DNV,NK and so on.
Model Number:	ZY-011

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	Pallet with plastic film wrapping or other packages
Delivery Time:	Within 20 to 30 days, According to customers's order
Payment Terms:	L/C,T/T
Supply Ability:	2000pcs/month

Contact Now

Detailed Product Description

Step Qty:	12--52	Nominal Size L1:	3600--15600mm 3600--15600mm
Max. Height:	3600--13800m 3600--13800m	Weight:	320--1370kg 320--1370kg
ODM Or OEM Service:	Available	Third Party Inspection:	Or Other Available Inspection
Material:	Aluminum Steel Etc	Key Words:	Boarding Ladder/swimming Pool Ladder/Aluminum Ladder
Highlight:	boat boarding ladders , stainless steel boat ladder

Aluminum Boarding Ladder Swimming Pool Inclined Ladder 50kgs Max. Load

Product Overview

High-quality aluminum inclined ladder designed for swimming pools and marine applications with maximum load capacity of 50kg. Features surface oxidation treatment for enhanced durability and corrosion resistance.

Key Specifications

Available with CCS, BV, ABS, DNV, GL, NK certification upon request
Aluminum folding step ladder hinge mechanism
Smooth extend and locking mechanism for easy operation
Surface oxidation treatment for enhanced durability
Material: Aluminum / Stainless steel options available
Customized or standard sizes available
Excellent load-bearing capacity
Easy installation, sturdy construction, and easy maintenance
Applications: Various cabins, bulkhead, mast, deckhouse, and swimming pools

Technical Details

Item	Aluminum Ladder
Material	Aluminum (Other materials available on request)
Handrail	Single
Surface	Nude
Size	Custom sizes available, suitable for floating marinas
Use	Swimming pools and other locations requiring ladders
Strong Points	Easy assembly, durable construction
Payment	L/C, T/T

Product Models & Specifications

Item No.	ZY-011-01	ZY-011-02	ZY-011-03	ZY-011-04
Total Steps	7	9	11	13
Extension Length	2m	2.6m	3.2m	3.8m
Open Size (cm)	200x45.5x6.5	260x46x7.5	320x47x8	380x48x8.8
Folded Size (cm)	69x45.5x6.5	74x46x7.5	80x47x8	87x48x8.8
Step Height	30cm	30cm	30cm	30cm
Net Weight	5.5/4.6kg	7.4/6.5kg	9.5/8.7kg	12/10.7kg
Max. Load	150kgs	150kgs	150kgs	150kgs
Aluminum Thickness	1.3mm	1.3mm	1.3mm	1.3mm
Packing Size (cm)	46.5x7.9x70	48x8x75.5	47.8x8.8x81	48.7x10.3x88
Load Capacity (20' & 40HQ)	1090/2645	965/2345	825/2000	640/1550

All products can be customized according to your requirements.

Packaging & Delivery

Package: Pallet with plastic film wrapping or other protective packaging

Delivery Time: Within 20 to 30 days, based on order requirements

Shipment: 20'GP, 40'GP, 40'HQ, 40'OT or bulk shipment options

Payment: L/C or T/T (30% prepaid deposit, 70% balance against copy of B/L)

Quality Assurance

All ladders undergo rigorous load testing and factory inspection. We provide comprehensive technical support including design, manufacturing, and installation services according to customer specifications.

Global Export Experience

We have extensive experience exporting marine ladders to Malaysia, Indonesia, Vietnam, Nigeria, India, Netherlands and other international markets.
