| SWL: | 500 Tons | Material: | Carbon Steel Or Cast Iron |
|---|---|---|---|
| Model: | Single/Double/Cross | Type: | Mooring Ballard |
| Standard: | GB/T 554-1996 | Color: | Customized |
| OEM & ODM Service: | OEM & ODM Service: Available | Third Party Inpection: | Or Other Available Inspection |
| Key Words: | Marine Bollards/mooring Bollards | ||
| Highlight: | ship bollards,dock bollards |
||
| Place of Origin | Shanghai China |
| Brand Name | Zhiyou |
| Model Number | ZY-Z001 |
| Color | Customized |
| Material | Carbon steel or Cast Iron |
| SWL | 500 Tons |
| Model | Single/Double/Cross |
| OEM & ODM Service | Available |
| Standard | GB/T 554-1996 |
| Type | Mooring Bollard |
| Type | D (mm) | D1 (mm) | D2 (mm) | d (mm) | d1 (mm) | H (mm) | h1 (mm) | s (mm) | a (mm) | Fa (KN) | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DIN-1 | 160 | 195 | 210 | 60 | 85 | 80 | 50 | 2 | 12 | 10 | 18 |
| DIN-2 | 200 | 245 | 265 | 70 | 102 | 102 | 50 | 3 | 12 | 20 | 27 |
| DIN-3 | 250 | 300 | 330 | 85 | 126 | 126 | 50 | 3 | 15 | 32 | 50 |
| DIN-5 | 320 | 390 | 420 | 106 | 160 | 160 | 50 | 3 | 15 | 50 | 85 |
| DIN-8 | 400 | 490 | 530 | 125 | 208 | 208 | 60 | 3 | 18 | 80 | 156 |
| DIN-12 | 450 | 560 | 610 | 160 | 256 | 256 | 85 | 3 | 18 | 125 | 259 |
| DIN-20 | 500 | 620 | 640 | 190 | 278 | 278 | 100 | 5 | 20 | 200 | 376 |
| DIN-32 | 560 | 740 | 780 | 230 | 348 | 348 | 150 | 5 | 20 | 320 | 649 |
Fixed to attached cable pile on the deck for belaying operations. Installed on the deck as guide rope devices near fixed mooring points for securing the free end of mooring lines.

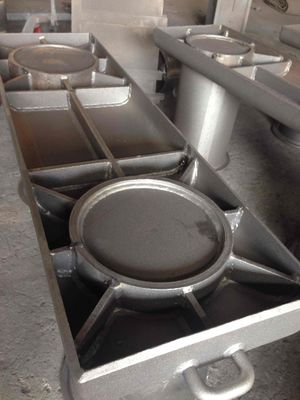

Designed to withstand substantial forces, requiring robust base construction and reinforced deck areas near bollard installations. Available in vertical, double, cross, and mooring horn configurations.

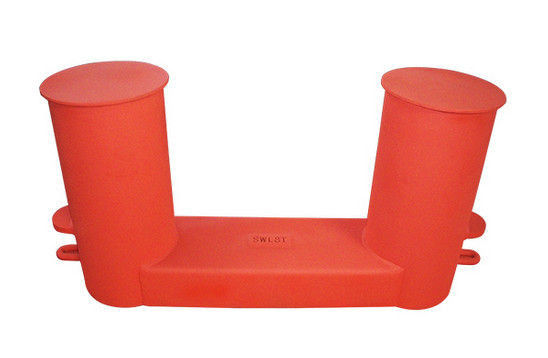

Consists of one or two short columns fixed to the deck, providing secure binding and fixation for cable operations.
Payment: T/T (30% deposit in advance, 70% balance before delivery) or Irrevocable L/C at sight
Incoterm: EXW/FCA/FOB, C&F/CIF
Package: Pallet with film packing or according to customer requirements
Lead Time: Within one month for one 20'GP container
Shipment: 20'GP, 40'GP, 40'HQ, 40'OT or in bulk
Zhiyou has extensive experience providing OEM services for reputable companies, ensuring technical advantages with precise design. Our marine and offshore products are designed according to ABS, CCS, BV, LR, DNV, NK, KR standards.
Product Range: Comprehensive marine outfittings, equipment, and facilities
Product Design: Strong engineering team supporting design, manufacture, and installation according to customer requirements

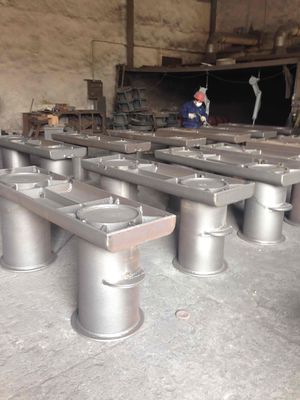

Production Process: Majority of products manufactured in our own facilities ensuring quality control and delivery reliability
Product Inspection: Double inspection system ensuring complete quality assurance
