Product Details:
Payment & Shipping Terms:
|
| SWL: | 500 Tons | Material: | Carbon Steel Or Cast Iron |
|---|---|---|---|
| Model: | Single/Double/Cross | Type: | Mooring Ballard |
| Standard: | GB/T 554-1996 | Color: | Customized |
| OEM & ODM Service: | OEM & ODM Service: Available | Third Party Inpection: | Or Other Available Inspection |
| Key Words: | Chain Stopper/cable Stopper/mooring Warping Rollers/ship Bollards | ||
| Highlight: | ship bollards,dock bollards |
||
| Place of Origin | Shanghai China |
| Brand Name | Zhiyou |
| Model Number | ZY-Z001 |
| Color | Customized |
| Material | Carbon steel or Cast Iron |
| SWL | 500 Tons |
| Model | Single/Double/Cross |
| OEM & ODM Service | Available |
| Standard | GB/T 554-1996 |
| Type | Mooring Ballard |
| Type | D (mm) | D1 (mm) | D2 (mm) | d (mm) | d1 (mm) | H (mm) | h1 (mm) | s (mm) | a (mm) | Fa (KN) | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DIN-1 | 160 | 195 | 210 | 60 | 85 | 80 | 50 | 2 | 12 | 10 | 18 |
| DIN-2 | 200 | 245 | 265 | 70 | 102 | 102 | 50 | 3 | 12 | 20 | 27 |
| DIN-3 | 250 | 300 | 330 | 85 | 126 | 126 | 50 | 3 | 15 | 32 | 50 |
| DIN-5 | 320 | 390 | 420 | 106 | 160 | 160 | 50 | 3 | 15 | 50 | 85 |
| DIN-8 | 400 | 490 | 530 | 125 | 208 | 208 | 60 | 3 | 18 | 80 | 156 |
| DIN-12 | 450 | 560 | 610 | 160 | 256 | 256 | 85 | 3 | 18 | 125 | 259 |
| DIN-20 | 500 | 620 | 640 | 190 | 278 | 278 | 100 | 5 | 20 | 200 | 376 |
| DIN-32 | 560 | 740 | 780 | 230 | 348 | 348 | 150 | 5 | 20 | 320 | 649 |

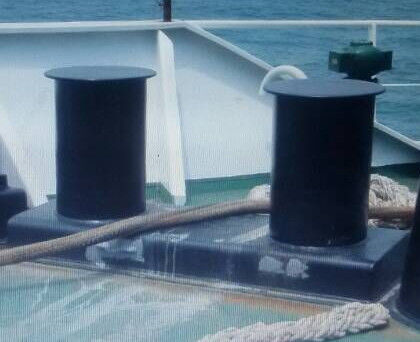

Fixed to attached cable pile on the deck. For belaying, installed on the deck as guide rope device near the fixed mooring for the free end of the mooring line. Its force capacity is very large, requiring a strong base and reinforced deck near the bitt. Available types include vertical, double, cross, and mooring horn configurations.

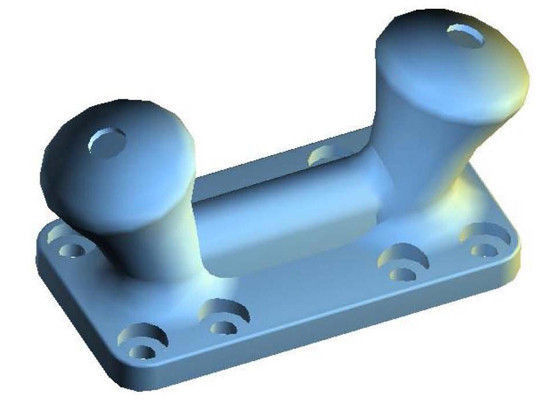

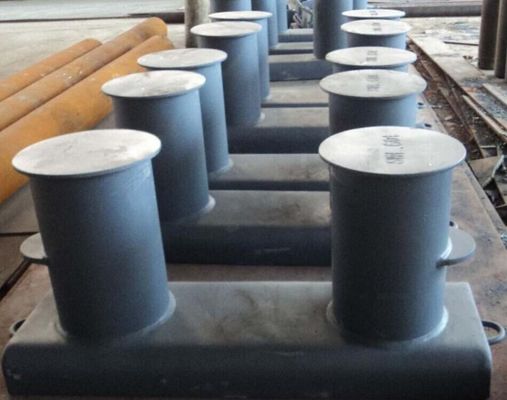

Features one or two short columns fixed on the deck for bound and fixed cable operations. Referred to as "bollard".
Payment: By T/T (30% deposit T/T in advance, balance 70% cleared before delivery) or Irrevocable L/C at sight
Incoterm: EXW/FCA/FOB, C&F/CIF
Package: Pallet with film packing or according to customer requirements
Lead Time: Within one month for one 20'GP
Shipment: 20'GP, 40'GP, 40'HQ, 40'OT or in bulk
Zhiyou has extensive experience providing OEM services for reputable companies, ensuring technical advantages with precise design. Our marine and offshore products are designed according to ABS, CCS, BV, LR, DNV, NK, KR standards.
Punctual Delivery:
After-Sales Services:
Professional Design & Efficient Solutions:
Product Range: All marine outfittings, equipment and facilities
Product Design: Strong engineering team supporting design, manufacture, and installation according to customer requirements
Product Process: Most products finished in our own manufacturing bases ensuring quality control and delivery timelines
Product Inspection: Double inspection system ensuring complete quality guarantee
| Category | Product Types |
|---|---|
| 1. Marine Door | Watertight, Fireproof, Quick action, Weather tight, Airtight & Sound-reduction, Hydraulic Watertight, Hollow Cabin Door |
| 2. Marine Windows | Fixed, Skylight, Porthole, Sliding, Watertight, Fireproof, Louver & Cabin Shutters |
| 3. Hatch Cover & Man Hole | Sliding, Watertight Manhole Cover, Bolted watertight, Suez Canal Light, Quick action, Type A B C D, Rotating Oil tight |
| 4. Mooring Component | Marine bollards, Fairlead, Mooring roller, Mooring chock |
| 5. Marine Steel Product | Seamless steel Pipe, Seam steel pipe, Marine crane, Marine Stern Roller, Marine fender rubber cylinder, Steel structure, API pipe |
| 6. Marine Propeller & Shaft | Rudder System, propeller, Rudder shaft sealing component, Rudder blade, Rudder carrier bearing, Rudder stock/pintle sealing apparatus, Fin stabilizer |
| 7. Marine Deck Equipment | Mooring winch, Crane, Windlass, Capstan, Rope Guider, Cable lifter |
| 8. Rubber Elements | Rubber fenders, Pneumatic fender, Ship launching airbag, Rubber sealing strip, Quay fenders, Drain airbag |
| 9. Pressure Vessel Tank | Anti-Corrosion pressure, Fermentation tank, Low temperature pressure, Compressor air tank, Oil & LPG tank, Vacuum tank, Foam buffer tank |
| 10. Boarding Ladder & Gangplank | Boarding ladder, Draft ladder, Lifesaving ladder, Vertical access ladders, Embarkation ladder, Accommodation ladder, Gangplank |
| 11. Welding Material | E 6013, E 7018, E 7024, E 7018-1, E 308L-16, E 347L-16, E 309L-16 |
| 12. Metal Processing Machinery Parts | Machinery parts processed by lathes, milling machines, planing machines, drills according to customer drawings or requirements |
