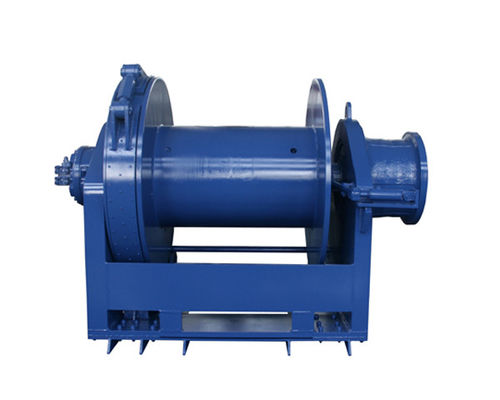

High Speed Lifting Marine Cable Winch and Rope Guider with 500 Tons SWL and Low-amp Permanent Magnet Motor
-
-
Large Image :
High Speed Lifting Marine Cable Winch and Rope Guider with 500 Tons SWL and Low-amp Permanent Magnet Motor
|
Product Details:
| Place of Origin: |
Shanghai China |
| Brand Name: |
Zhiyou |
| Certification: |
ABS CCS BV LR DNV NK KR etc. |
| Model Number: |
ZY-Z003 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
Negotiable |
| Packaging Details: |
Pallet with plastic film or other customers required packages |
| Delivery Time: |
Within 20 to 30 days, According to customers's order |
| Payment Terms: |
L/C,T/T,Western Union |
| Supply Ability: |
10000pcs/month |
|
Detailed Product Description
| SWL: |
500 Tons |
Material: |
Carbon Steel Or Cast Iron |
| Model: |
Single/Double/Cross |
Type: |
Mooring Ballard |
| Standard: |
GB/T 554-1996 |
Color: |
Customized |
| OEM & ODM Service: |
OEM & ODM Service: Available |
Third Party Inpection: |
Or Other Available Inspection |
| Key Words: |
Marine Cable Winch/rope Guider |
| Highlight: |
ship bollards, dock bollards |
High Speed Lifting Mooring Components Marine Cable Winch, Rope Guider
Professional marine cable winch and rope guider designed for high-speed lifting operations with reliable performance and easy operation.
Key Features
- Powers load in and out efficiently
- Full metal differential planetary gear train
- Pull and turn freespooling clutch
- Low-amp permanent magnet motor
- Circuit breaker protector available
- 4-way roller fairlead
- Removable clevis pinned latched hook with rope thimble
- Mounting plate included
- High speed lifting capability
- Easy operation
- Available in various types
Technical Specifications
| Model |
Rated Load (kg) |
Rated Speed (m/min) |
Lifting Height (m) |
Cable Diameter (mm) |
Cord Capacity (m) |
Work Level |
Motor (kw) |
Volt (v) |
Frequency (Hz) |
N.W. (Kg) |
| ZY-Z003-01 | 200 | 11 | 29 | Φ6 | 30 | M3 | 0.6x4 | AC 100/110/120/220/230/240 | 50/60 | 36 |
| ZY-Z003-02 | 250 | | | | | | 0.75x4 | | | 40 |
| ZY-Z003-03 | 300 | 13 | | Φ7 | 30 | | 1.1x4 | | | 49 |
| ZY-Z003-04 | | | | | | | | Three phase 230/380/415/440/480 | | 48 |
| ZY-Z003-05 | 500 | 13 | 58 | Φ9 | 60 | | 2.2x4 | | | 136 |
| ZY-Z003-06 | 750 | | | | | | 3x4 | | | 149 |
| ZY-Z003-07 | 1000 | 13.5 | | Φ11 | 60 | | 4x4 | | | 156 |
| ZY-Z003-01 | 2200 | 10 | 97 | Φ16 | 100 | M3 | 6x4 | Three Phase 130/380/415/440/480 | 50/60 | 450 |
| ZY-Z003-02 | 3200 | 11 | | Φ18 | | | 7.5x4 | | | 500 |
| ZY-Z003-03 | 3500 | | 140 | | 143 | | 9x4 | | | 550 |
| ZY-Z003-04 | 5000 | | 192 | Φ22 | 200 | | 15x4 | | | 1500 |
| ZY-Z003-05 | 10000 | | 235 | Φ32 | 250 | | 22x6 | | | 3000 |
| Symbol Model |
A |
B |
C |
D |
E |
F |
G |
H |
| ZY-Z003-01 | 4-Φ10.5 | 142 | 142 | 510 | 210 | 246 | 108 | Φ94 |
| ZY-Z003-02 | | | | 525 | | | | |
| ZY-Z003-03 | | 172 | | 540 | 133 | | | Φ90 |
| ZY-Z003-04 | | | | 548 | | | | |
| ZY-Z003-05 | 4-Φ14 | 400 | 330 | 922 | 372 | 430 | 240 | Φ140 |
| ZY-Z003-06 | 4-Φ18 | | | 935 | | | | |
| ZY-Z003-01 | 4-Φ22 | 600 | 499 | 1160 | 565 | 658 | 312 | Φ178 |
| ZY-Z003-02 | | 847 | | 1431 | 860 | 416 | | |
| ZY-Z003-04 | 6-Φ24 | 920 | 950 | 1860 | 1010 | 1260 | 660 | Φ300 |
| ZY-Z003-05 | | 1600 | | 2450 | 1050 | 832 | | Φ450 |
Package, Delivery & Payment Terms
- Payment: By T/T (30% deposit T/T in advance, balance 70% cleared before delivery) or Irrevocable L/C at sight
- Incoterm: EXW/FCA/FOB, C&F/CIF
- Package: Pallet with film packing or according to customer's requirement
- Lead time: Within one month for one 20'GP
- Shipment: 20'GP, 40'GP, 40'HQ, 40'OT or in bulk
Our Service
Zhiyou has been doing OEM jobs for many reputable companies for years, guaranteeing technical advantages with precise design. Our marine and offshore products are designed according to ABS, CCS, BV, LR, DNV, NK, KR standards.
- Punctual Delivery: Tight production scheduling with regular updates and prompt shipping notifications
- After-Sales Service: 24-hour response time, strict warranty adherence, and professional maintenance services
- Professional Design: Experienced engineering team providing efficient solutions and bid assistance
Quality Guarantee
- Product Range: Comprehensive marine outfittings, equipment and facilities
- Product Design: Strong engineering team supporting design, manufacture, and installation according to requirements
- Product Process: Most products finished in our own manufacturing bases ensuring quality and delivery time
- Product Inspection: Double inspection system for complete quality assurance
