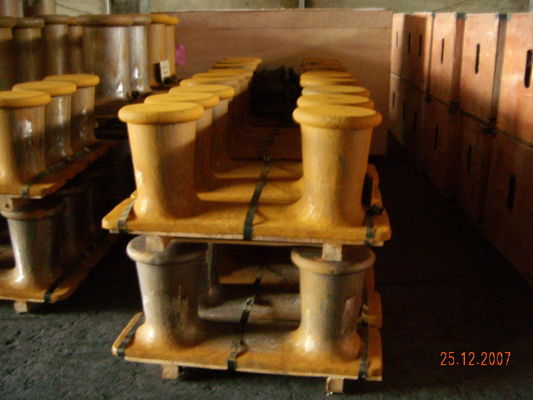

Cast Iron Mooring Components 26mm Sheaves Mooring Bollards

Large Image : Cast Iron Mooring Components 26mm Sheaves Mooring Bollards

Product Details:

Place of Origin:	Shanghai China
Brand Name:	Zhiyou
Certification:	ABS CCS BV LR DNV NK KR etc.
Model Number:	ZY-Z001

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	Pallet with plastic film or other customers required packages
Delivery Time:	Within 20 to 30 days, According to customers's order
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

SWL:	500 Tons	Material:	Carbon Steel Or Cast Iron
Model:	Single/Double/Cross	Type:	Mooring Ballard
Standard:	GB/T 554-1996	Color:	Customized
OEM & ODM Service:	OEM & ODM Service: Available	Third Party Inpection:	Or Other Available Inspection
Key Words:	Chain Stopper/cable Stopper/mooring Warping Rollers/ship Bollards
High Light:	Cast Iron Mooring Components , 26mm Sheaves Mooring Bollards , Epoxy Primer Paint Mooring Bollards

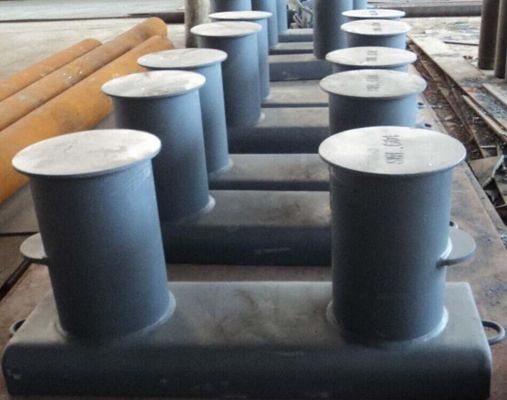

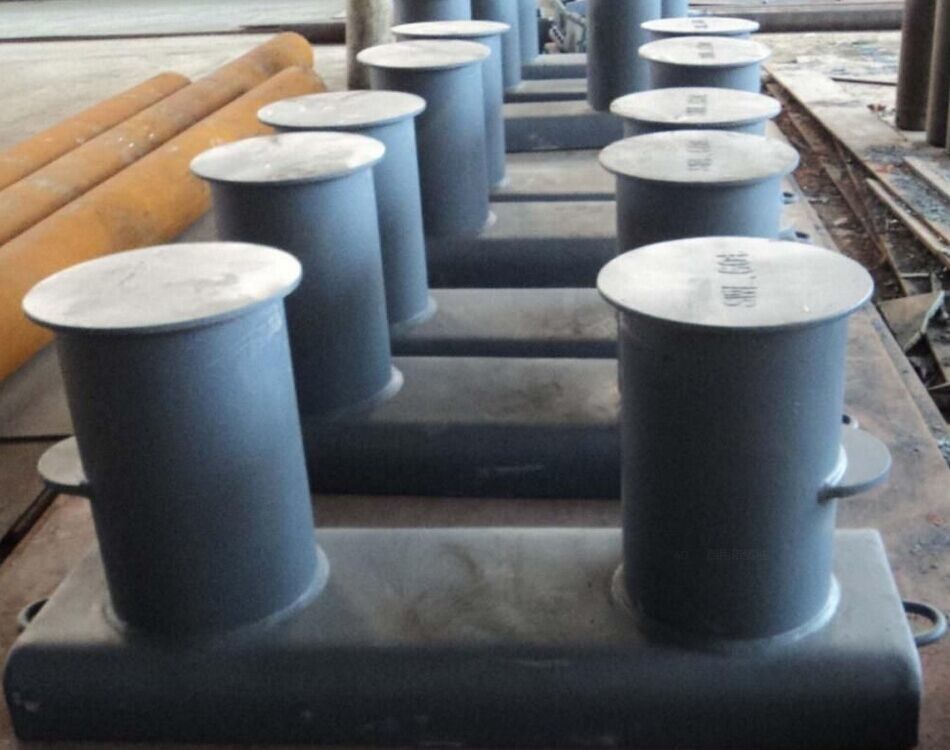

GB/T 554-2008 Standard Mooring Components Mooring Bollards / Ship Bollards

Specifications:

1. Marine sheaves are designed for breaking strength of wire with 90 deg wrap on sheave

2. Special sheaves for high-performance synthetic ropes are available.

3. Grease lubricate bearing for longer life.

4. Sheaves Dia.:26mm,30mm,36mm,40mm,42mm,48mm,60mm
5. Material: ZG230-450

6. Paint: Grey Epoxy Primer, for the middle paint and surface according to your requirement

Quick Details:

Place of Origin: Shanghai China	Brand Name: Zhiyou	Model Number: ZY-Z001
Color: Customized	Material: Carbon steel or Cast Iron	SWL:500 Tons
Model: Single/Double/Cross	OEM & ODM Service: Available	OEM & ODM Service: Available
Standard: GB/T 554-2008	Type: Mooring Ballard

Details for Warping Rollers	ZHIYOU MARINE
	www.marineoutfittings.com

WARPING ROLLERS
Type	D	D1	D2	d	d1	H	h1	s	a	Fa	Weight
(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(KN)	(KG)
DIN-1	160	195	210	60	85	80	50	2	12	10	18
DIN-2	200	245	265	70	102	102	50	3	12	20	27
DIN-3	250	300	330	85	126	126	50	3	15	32	50
DIN-5	320	390	420	106	160	160	50	3	15	50	85
DIN-8	400	490	530	125	208	208	60	3	18	80	156
DIN-12	450	560	610	160	256	256	85	3	18	125	259
DIN-20	500	620	640	190	278	278	100	5	20	200	376
DIN-32	560	740	780	230	348	348	150	5	20	320	649

Description:

1, Fixed to attached cable pile on the deck.

2, For belaying, installed on the deck of the guide rope device, near to the fixed mooring the free end of the mooring line. Its force is very big, requires the base must be very strong, near the bitt deck must be strengthened. Its type is vertical, Dou type, cross and mooring horn, etc.

3, With one or two short columns, and fixed on the deck, bound and fixed structure of cable operation. Referred to as "bollard.

Package & Delivery& Payment terms	ZHIYOU MARINE
	www.marineoutfittings.com

Payment:  By T/T(30% deposit T/T in advance, balance 70% cleared out before delivery) or
                  Irrevocable L/C at sight

Incoterm:   EXW/FCA/FOB, C&F/CIF

Package: Pallet with film packing  or according to customer's requirement

Lead time: Within one month for one 20'GP

Shipment : 20'GP, 40'GP,40'HQ, 40'OT or in bulk

Our Service	ZHIYOU MARINE
	www.marineoutfittings.com

Zhiyou has been doing the OEM job for many reputable companies for many years, which makes the best guaranty for Zhiyou's technical advantages with precise design. Zhiyou Marine& Offshore is designed according to ABS CCS BV LR DNV NK KR etc standard. In line with the responsibility spirit for customers,

we try to satisfy the standards and the customers’ requirements in the process of designing and

manufacturing process, as well as fully consider the basic cost. The products we providing will guarantee

the quality and reasonable price, which ensure our cooperated customers can get the maximum value

and minimum cost.

1) Punctual delivery:
• We put your order into our tight production schedule, keep our client informed about the production process, ensure your punctual delivery time.
• Shipping notice/ insurance to you as soon as your order is shipped.

2) Services after sales:
• An reasonable solution and/or response to any inquiry shall be provided within 24hrs upon receipt of it.
• Terms and conditions of warranty shall be strictly abiding by.
• Maintenance service shall be provided accordingly

3) Professional design and efficient solution:
• Our experienced engineers and experts guaranteed our customer with satisfactory design & solution
• Rich experiences in various bids assistance including documentary support
• Efficient solution providing through our professional designer and technical supporter

Quality Guarantee	ZHIYOU MARINE
	www.marineoutfittings.com

Product Range: All marine outfittings, equipment and facilities, etc

Product Design: With a strong engineer team, for all marine products, we support design, manufacture,

install etc, according to your requirements. All products strictly conform to your confirmation.

Product Process: Most of the products are finished on our own manufacture bases, thus quality and delivery

time could safely be guaranteed and also avoid indirect troubles

Product Inspection: Double inspection make sure quality guaranteed completely.

Our Related Products	ZHIYOU MARINE
	www.marineoutfittings.com

OUR PRODUCT RANGE

1	Marine door	Watertight	Fireproof	Quick action	Weathertight	Airtight&Sound-reduction	Hydraulic Watertight	Hollow Cabin Door
2	Marine windows	Fixed	Skylight	Porthole	Sliding	Watertight	Fireproof	Louver& Cabin Shutters
3	Hatch cover& manhole	Sliding	Watertight Manhole Cover	Bolted watertight	Suez Canal Light	Quick action	Type A B C D	Rotating Oil tight
4	Mooring component	Marine bollards	Fairlead	Mooring roller	Mooring chock
5	Marine steel product	Seamless Steel Pipe	Seam steel pipe	Marine crane	Marine Stern Roller	Marine fender rubber cylinder	Steel structure	API pipe
6	Marine propeller& shaft	Rudder System	propeller	Rudder shaft sealing component	Rudder blade	Rudder carrier bearing	Rudder stock/pintle sealing apparatus	Fin stabilizer
7	Marine deck equipment	Mooring winch	Crane	Windlass	Capstan	Rope Guider	Cable lifter
8	Rubber elements	Rubber fenders	Pneumatic fender	Ship launching airbag	Rubber sealing strip	Quay fenders	Drain airbag
9	Pressure vessel tank	Anti- Corrosion pressure	Fermentation tank	Low-temperature pressure	Compressor air tank	Oil& LPG tank	Vacuum tank	Foam buffer tank
10	Marine boarding ladder& gangplank	Boarding ladder	Draft ladder	Lifesaving ladder	Vertical access ladders	Embarkation ladder	Accommodation ladder	Gangplank
11	Welding material	E 6013	E 7018	E 7024	E 7018-1	E 308L-16	E 347L-16	E 309L-16
12	Metal Processing Machinery Parts	Machinery Parts or fittings can be designed as your drawings or detailed requirements, and processed by lathes, milling machines, planning machines, drills.

NOTES:
1. The content of this table doesn't cover all categories, providing that the item you are looking for is not included hereof, please feel free to contact us.
2. All the products shall be customized accordingly, OEM&ODM available.
